TUTORIAL 92

english version

Thank you Sweety for your invitation to translate your tutorial.
Here you find the original of this tutorial:

Clic and move the brush to follow the tutorial.


To print


This tutorial is a personal creation of Sweety and it is prohibited to copy or distribute it on the net (forums, groupes.. etc), or to use it on commercials sites.
This tutorial was created and translated with Corel12, but can also be made using other versions of PSP.
Since version PSP X4, Image>Mirror was replaced with Image>Flip Horizontal,
and Image>Flip with Image>Flip Vertical, there are some variables.
In versions X5 and X6, the functions have been improved by making available the Objects menu.
In the latest version X7 command Image>Mirror and Image>Flip returned, but with new differences.
See my schedule here



For this tutorial, you will need:
tubes and decos of yours: a landscape, a person and one or two deco.
The rest of material here
Tubes used and not applied:
tube woman 9b0b3d32 (found on the web)
image paysage (Google image)
tube deco DBK DECOR-FURN 041 by Katrina (received by groups)
animals tubes (on the web).


Plugins
consult, if necessary, my filter section here
Filters Unlimited 2.0 here
Mura's Meister - Perspective Tiling here
Simple - 4Way Average, Half Wrap here
Mehdi - Wavy Lab 1.1 here
Toadies - What are you here
AP Lines - Lines SilverLining here
AP Lines - Lines Satin here
Alien Skin Eye Candy 5 Impact - Glass here
VanDerLee - Unplugged-X here
Filters Simple and Toadies can be used alone or imported into Filters Unlimited.
(How do, you see here)
If a plugin supplied appears with this icon it must necessarily be imported into Unlimited




You can change Blend Modes according to your colors.

Copy the Selections in the Selections Folder.

Choose two colors according to your landscape.
for me:
Set your foreground to #4f463d,
and your background to #b7ab91.



1. Open a new transparent image 800 x 600 pixels.

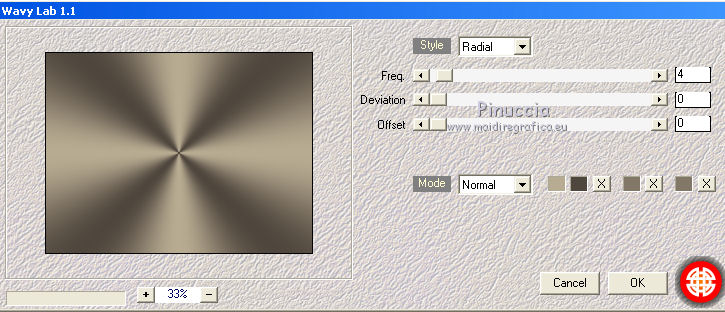

Effects>Plugins>Mehdi - Wavy Lab 1.1
This plugins works with your colors:
the first is your background color; the second is your foreground color;
keep the last two colors created by the filter.



Adjust>Blur Gaussian blur - radius 30.



Layers>New Raster Layer.
Selections>Select All.

Open your landscape and Edit>Copy.
Go back to your work and go to Edit>Paste into Selection.
Selections>Select None.

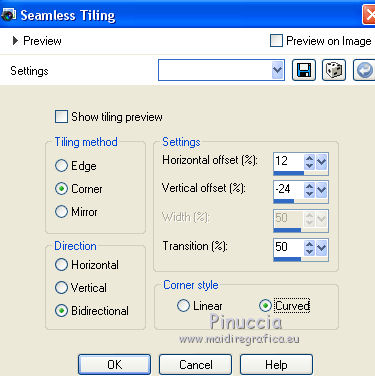

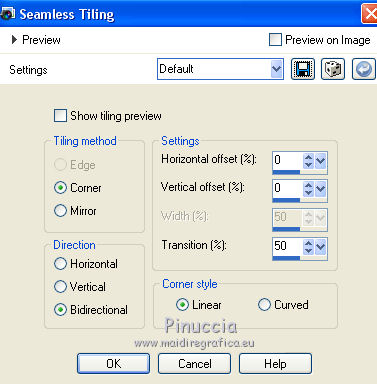

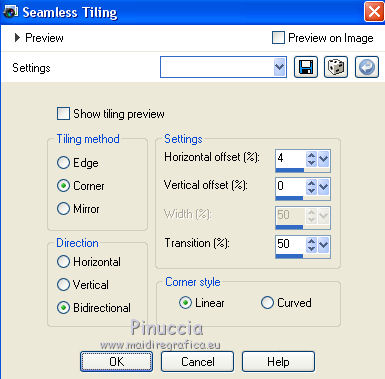

Effects>Image Effects>Seamless Tiling.

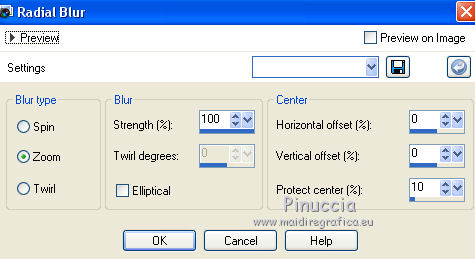

2. Adjust>Blur>Radial Blur.



Effects>Plugins>Simple - 4 way average.

Edit>Copy special>Copy Merged.
Edit>Paste as new layer.

Close this layer and activate the layer below (raster 2).
Change the opacity of this layer to Luminance (Legacy), opacity 100.



Layers>Merge>Merge down.

Open again and activate the top layer (Raster 3).

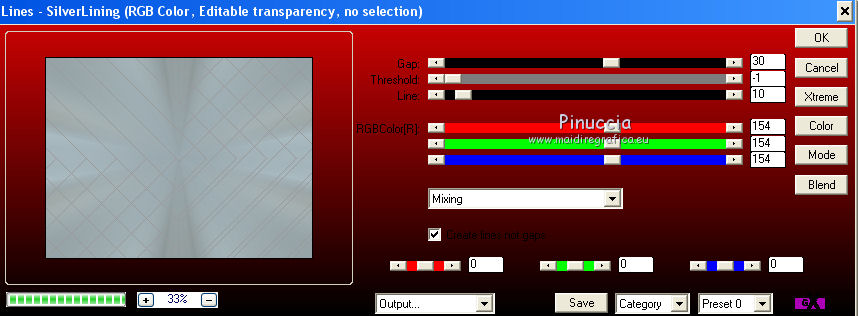

Effects>Plugins>AP Innovations - Lines SilverLining.



Selection Tool
(no matter the type of selection, because with the custom selection your always get a rectangle)
clic on the Custom Selection
and set the following settings.



Selections>Promote Selection to Layer.
Keep Selected.

3. Match mode of Flood Fill Tool to None



Flood fill the selection with your foreground color.

Selections>Modify>Contract - 15 pixels.

Activate again your landscape - Edit>Copy.
Go back to your work and go to Edit>Paste into Selection.

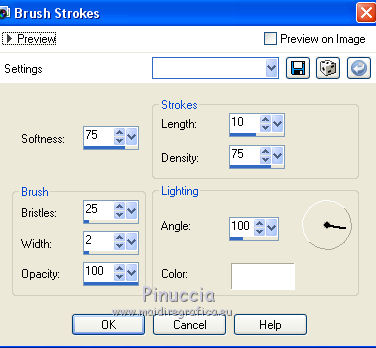

Effects>Art Media Effects>Brush Strokes.



Selections>Modify>Contract - 15 pixels.

Flood Fill the selection with your foreground color.
Selections>Modify>Contract - 15 pixels.
Press CANC on the keyboard

Keep still selected.

Layers>New Raster Layer.
Layers>Arrange>Move down.

Edit>Paste into Selection (your landscape is still in memory).
Selections>Invert.

Effects>3D Effects>Drop Shadow, color black.



Selections>Select None.

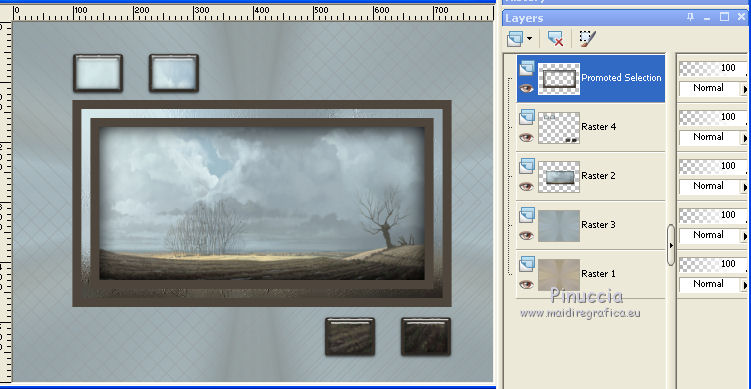

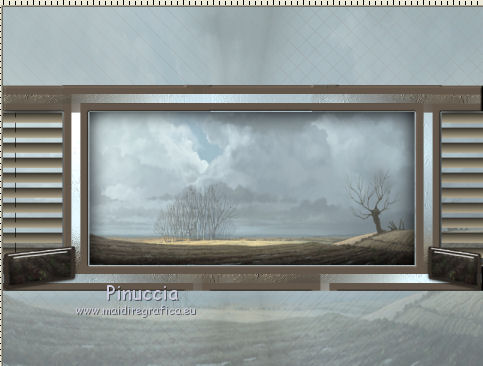

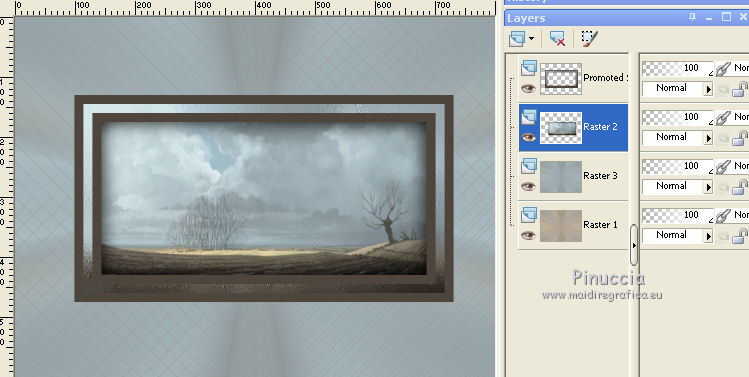

4. You should have this

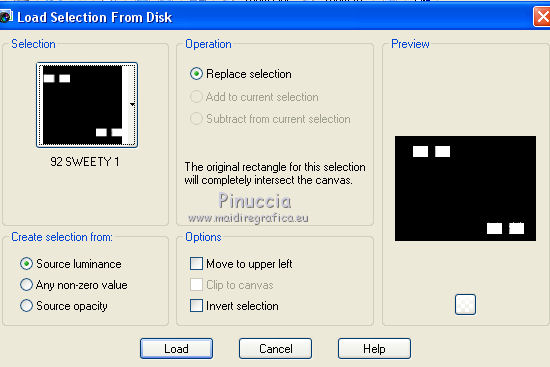

Selections>Load/Save Selections>Load Selection from Disk.
Look for and load the selection 90Sweety 1.



Layers>New Raster Layer.
Flood fill the selection with your foreground color.

Selections>Modify>Contract - 6 pixels.

Edit>Paste into Selection (your landscape is always in memory).

Effects>Plugins>Alien Skin Eye Candy 5 Impact- Glass.
Select the preset Clear and ok.



Selections>Select None.

5. Activate the top layer - Promoted selection.



Layers>Duplicate.

Effects>Image Effects>Seamless Tiling.



Layers>Merge>Merge down.

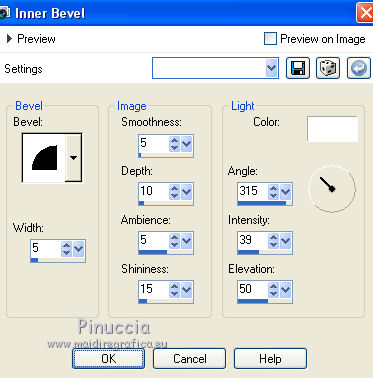

Effects>3D Effects>Inner Bevel.



Layers>Arrange>Move down.

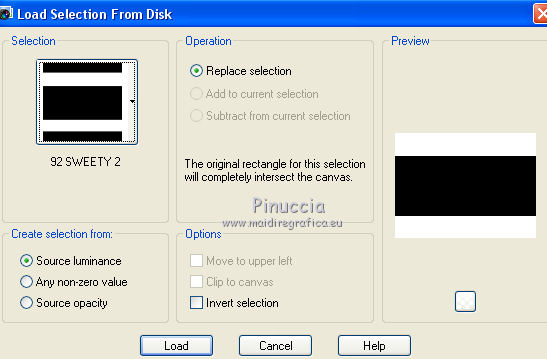

Selections>Load/Save Selections>Load Selection from Disk.
Look for and load the selection 90Sweety 2.



Press CANC on the keyboard.
Selections>Select None.

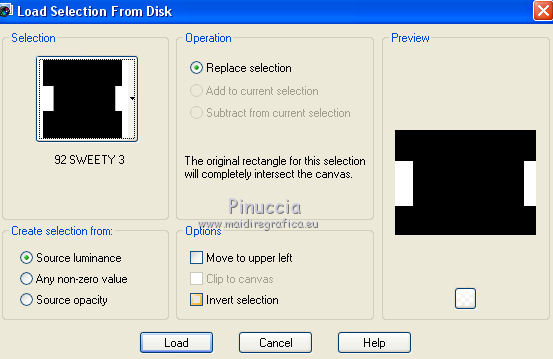

Selections>Load/Save Selections>Load Selection from Disk.
Look for and load the selection 90Sweety 3.



Layers>New Raster Layer.
Layers>Arrange>Move down - 2 times (it is over the layer Raster 3)



Edit>Paste into Selection (your landscape is always in memory).

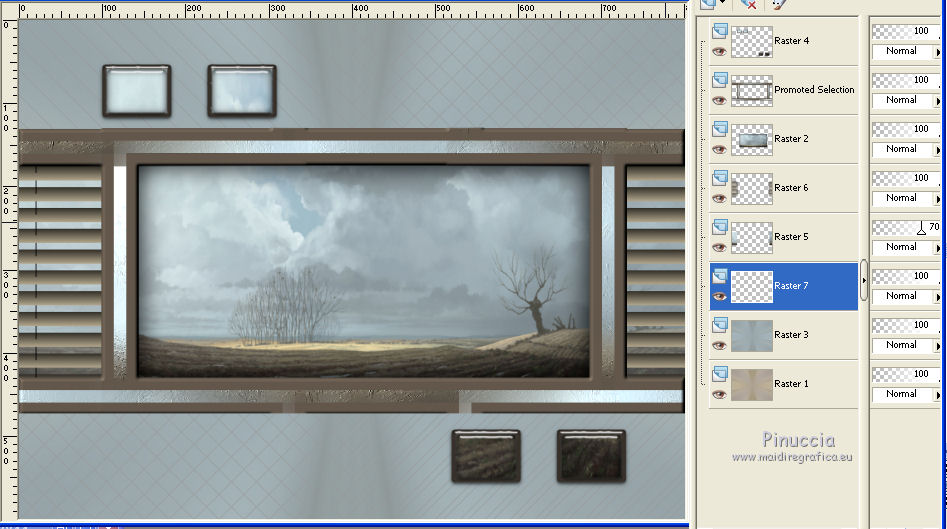

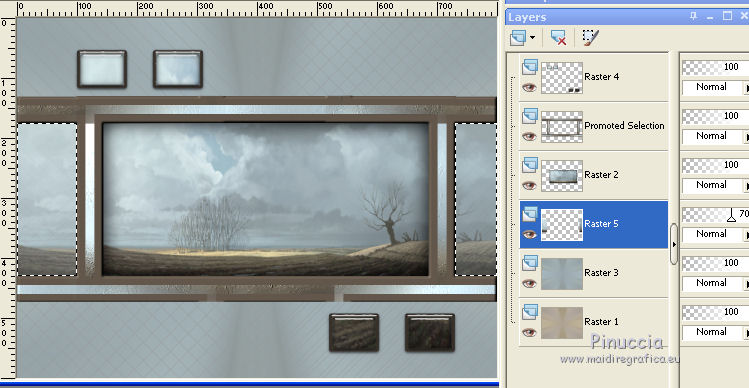

Change the opacity of this layer about to 70% or as you like better.



Keep selected and stay on this layer.

6. Layers>New Raster Layer.

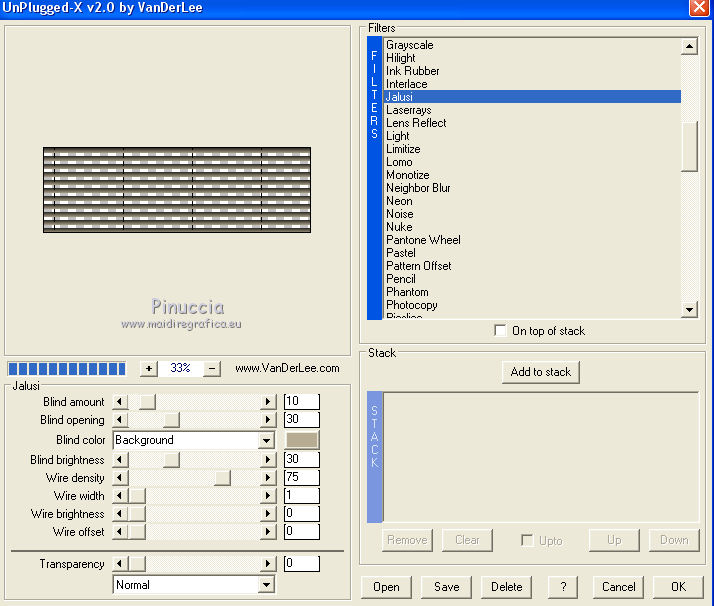

Effects>Plugins>VanDerLee - Unplugged-X.



Effects>3D Effects>Drop Shadow, same settings.



Selections>Select None.

Layers>New Raster Layer.
Layers>Arrange>Move down - 2 times - it is over the layer Raster 3.



Selections>Select All.
Edit>Paste into Selection (your landscape is still in memory).

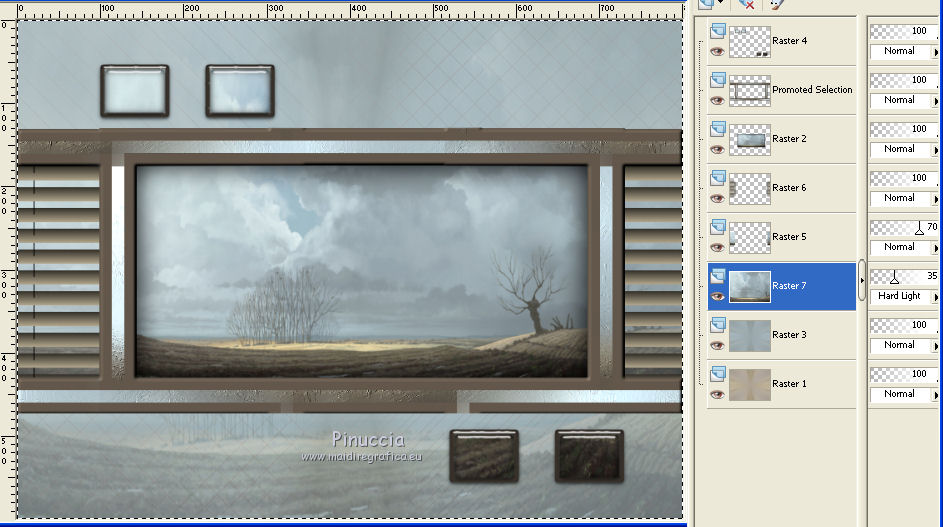

Change the opacity of this layer to Hard Light
and the opacity between 30 and 40.



Selections>Select None.

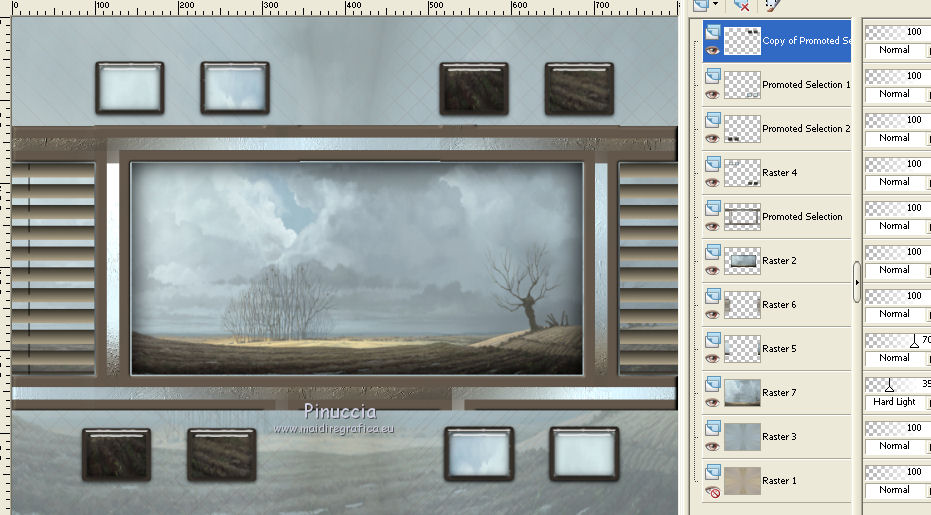

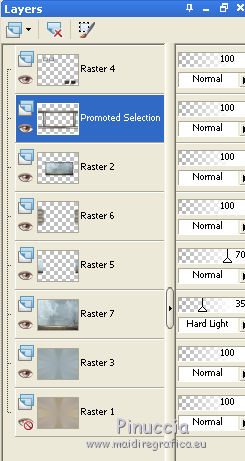

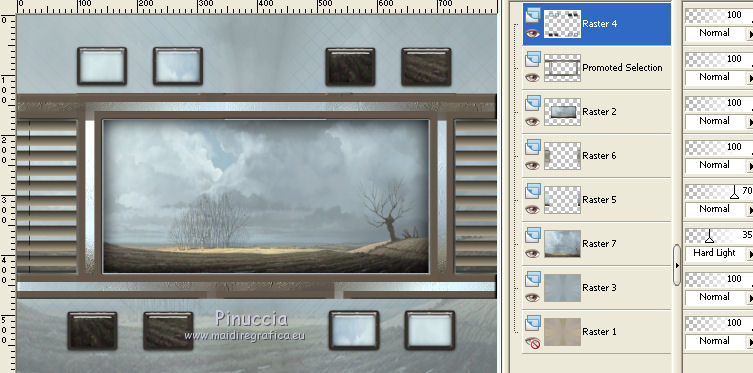

7. Close the bottom layer Raster 1 and activate the 2nd layer from the top (Promoted selection)

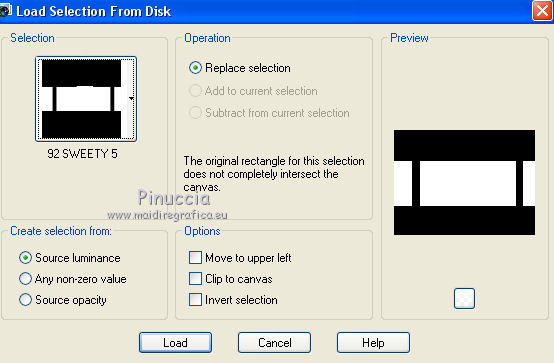

Selections>Load/Save Selections>Load Selection from Disk.
Look for and load the selection 90Sweety 5.



Press CANC on the keyboard.
Selections>Select None.

Activate the top layer Raster 4.

Custom Selection



Selections>Promote Selection to Layer.
Selections>Select None.

Image>Mirror.

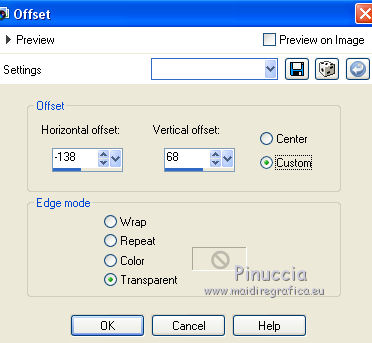

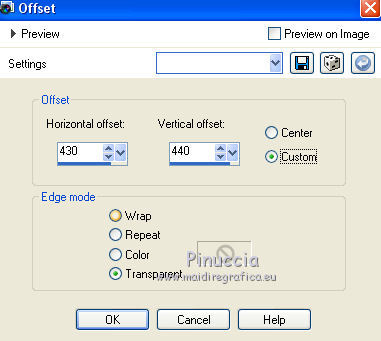

Effects>Image Effects>Offset.



Activate again the layer Raster 4.

Custom Selection



Selections>Promote Selection to Layer.
Selections>Select None.

Image>Mirror.

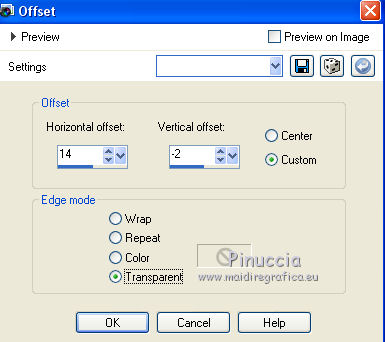

Effects>Image Effects>Offset.



Layers>Duplicate.
Effects>Image Effects>Offset.



Layers>Arrange>Bring to Top.



8. Layers>Merge>Merge Down - 3 times

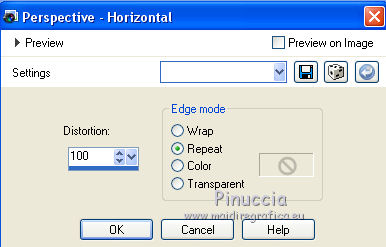

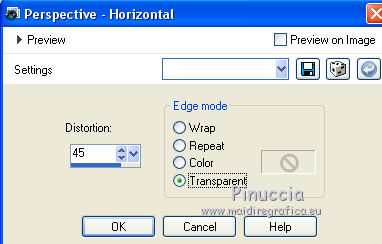

Effects>Geometric Effects>Perspective Horizontal.

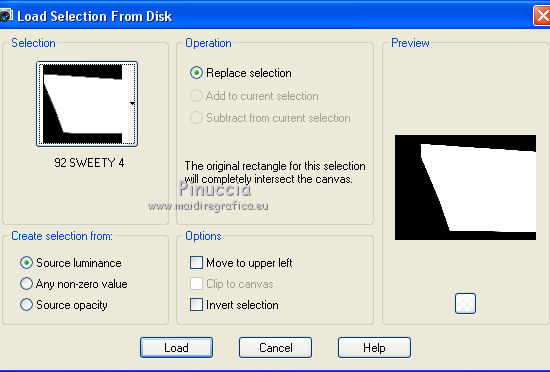

Selections>Load/Save Selections>Load Selection from Disk.
Look for and load the selection 90Sweety 4.



Press CANC on the keyboard.
Selections>Select None.

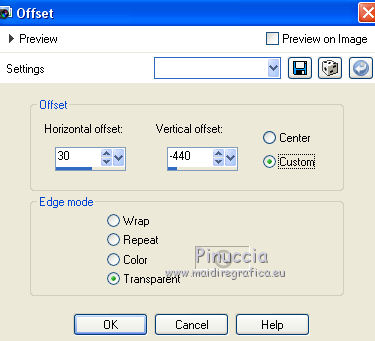

Effects>Image Effects>Offset.



Layers>Duplicate.
Image>Mirror.

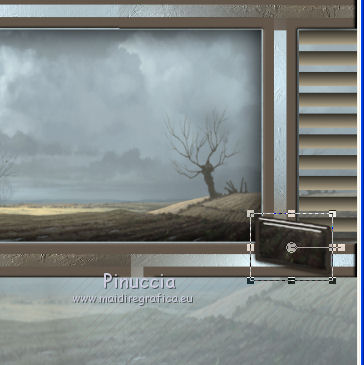

With the Pick Tool reduce the image



and place it rightly to the right side



Layers>Merge>Merge down.

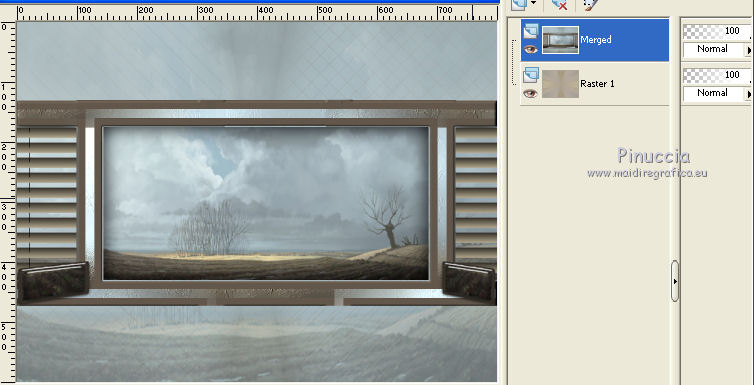

Layers>Merge>Merge visible.

9. Open again the bottom layer (Raster 1) but keep selected the top layer (merged)



Edit>Copy.
Edit>Paste as new image and minimize it (we'll use it later).

Go back to your work.

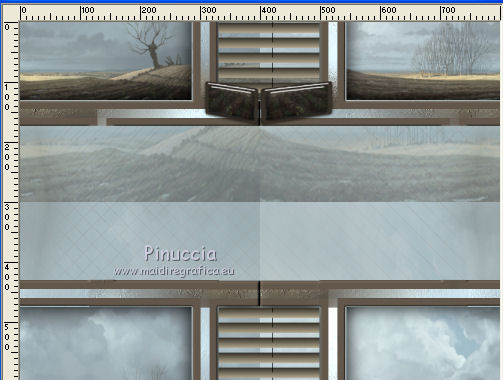

Effects>Plugins>Simple - Half Wrap.

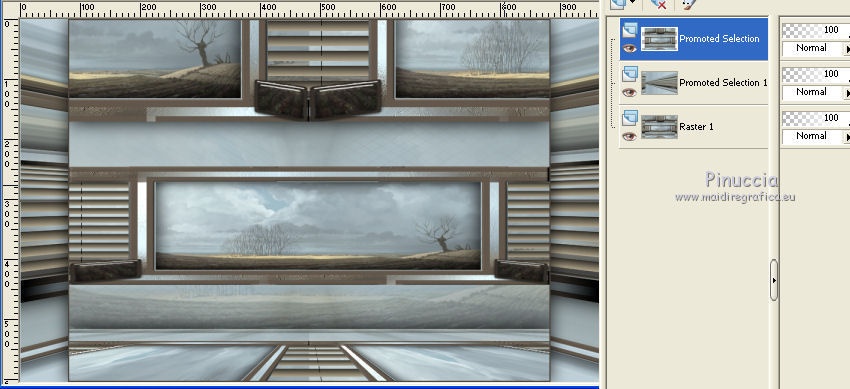

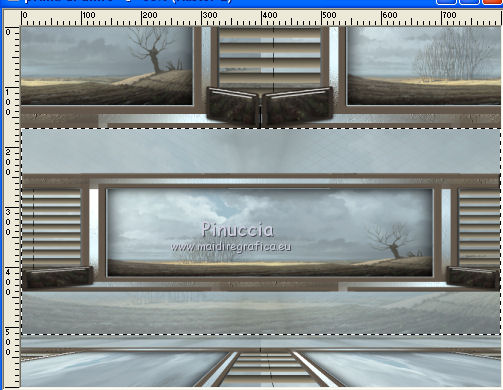

You'll have this



Custom Selection



Selections>Promote Selection to Layer.
Go back to the layer above (merged).
Press CANC on the keyboard.

Go back to the top layer (Promoted selection).

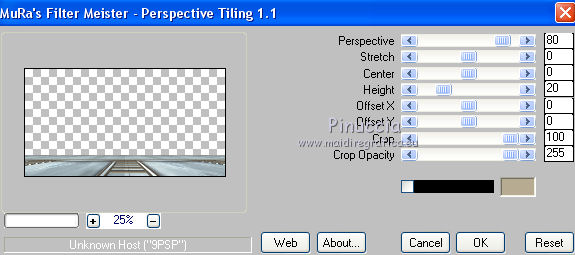

Effects>Plugins>Mura's Meister - Perspective Tiling.



Layers>Merge>Merge down.
Selections>Select None.

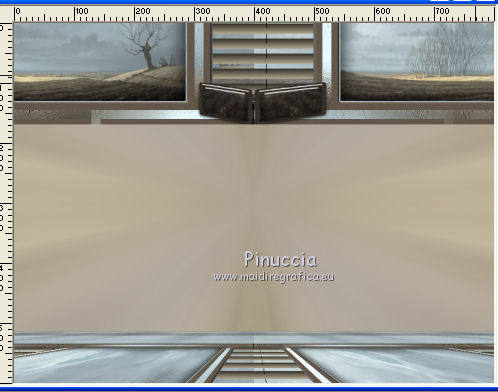

Result



10. Custom Selection



Layers>New Raster Layer.
Layers>Arrange>Move down.

Activate the image of the step 9 - Edit>Copy.
Go back to your work and go to Edit>Paste into Selection.



Selections>Invert.

Effects>3D Effects>Drop Shadow, same settings.



Selections>Select None.

11. Image>Add borders, 2 pixels, symmetric, foreground color.
Selections>Select All.

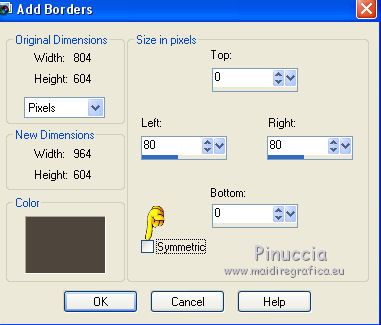

Image>Add borders, symmetric not checked, whatever color.



Selections>Promote Selection to Layer.
Activate again the background layer.
Layers>Promote Background layer.

Effects>Image Effects>Seamless Tiling, default settings.



Selections>Invert.
Selections>Promote selection to layer.
Selections>Select None.

Effects>Geometric Effects>Perspective Horizontal.



Layers>Duplicate.
Image>Mirror.
Layers>Merge>Merge down.

Activate the top layer (Promoted selection)



Effects>3D Effects>Drop Shadow, color black.

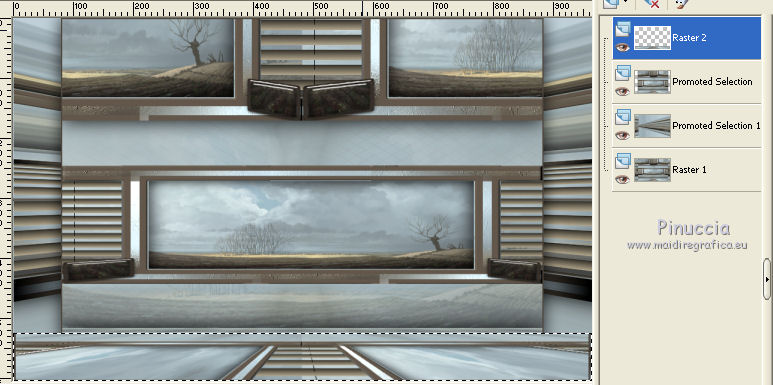

12. Custom Selection



Edit>Copy.
Selections>Select None.

Layers>New Raster Layer.
Custom Selection



Edit>Paste into Selection.



Selections>Select None.

13. Copy/Paste your tubes.
For me:
Woman tube 9b0b3d32.png (found on the web and not supplied).
I resize to 70%, resize all layers not checked.
After: Image>Mirror and place it to the left side.

Effects>3D Effects>Drop Shadow, same settings.



Tube deco DBK DECOR-FURN 041 (received from the groups and not supplied).
I resize to 50%, resize all layers not cheched, and after Image>Mirror and place it to the right side.

Effects>3D Effects>Drop Shadow, color black.



Cat resized to 45%, resize all layers not checked.
Birds resized to 30%, resize all layers not checked.

Image>Add borders - 2 pixels, symmetric, background color.

14. Selections>Select All.
Image>Add borders, 30 pixels, whatever color.

Selections>Invert.

Activate again your landscape. Sur cette image:
Effects>Image Effects>Seamless Tiling, default settings



Edit>Copy.
Go back to your work and go to Edit>Paste into Selection.

Adjust>Blur>Radial Blur, same settings.

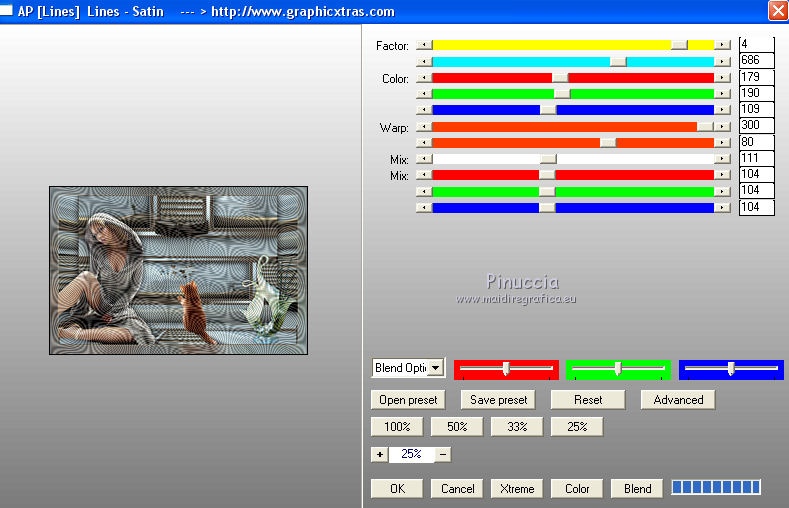

Effects>Plugins>AP Lines - Lines Satin

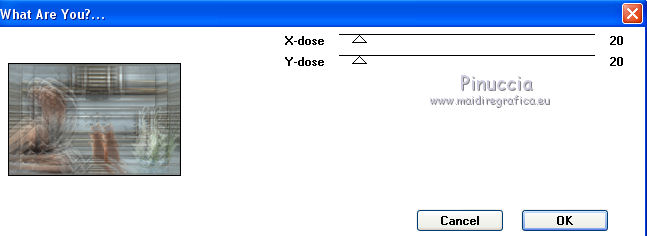

Effects>Plugins>Toadies - What are you, default settings.



Again Effects>Plugins>AP Lines - Lines Satin, same settings.

Selections>Invert.

Effects>3D Effects>Drop shadow, color black.



Selections>Select None.

15. Image>Add borders, 3 pixels, symmetric, foreground color.
Sign your work.

Layers>Merge>Merge All.
Image>Resize, 950 width, resize all layers checked.

Save as jpg.

The tubes of this version are by Nicole and Nikita



Your versions. Thanks



Lurdes



Gerda



Pia



If you have problems or doubts, or you find a not worked link, or only for tell me that you enjoyed this tutorial, write to me.
My mail is in the menu on the top of the page.

1 November 2016
