VENTANA AL MAR

english version WINDOW ON THE SEA

Here you find the original of this tutorial:

Clic and move the brush to follow the tutorial.


To print


This tutorial was written with CorelX19 and translated with CorelX and CorelX17, but it can also be made using other versions of PSP.
Since version PSP X4, Image>Mirror was replaced with Image>Flip Horizontal,
and Image>Flip with Image>Flip Vertical, there are some variables.
In versions X5 and X6, the functions have been improved by making available the Objects menu.
In the latest version X7 command Image>Mirror and Image>Flip returned, but with new differences.
See my schedule here


italian translation here
your versions qui/here


For this tutorial, you will need:
A landscape misted and a woman tube
The rest of the material qui
Tubes not supplied:
Woman tube by Malackatube (malackatube v0564)
Landscape misted by Logane (logane_paysage_plagemisted_16mars2015)
The rest of the material is by Yedralina
(The links of the tubemakers here).



Plugins:
consult, if necessary, my filter section here
L&K's - L&K's Zitah here
Alien Skin Eye Candy 5 Impact - Extrude here
Mura's Meister - Perspective Tiling here




You can change Blend Modes according to your colors.
In the newest versions of PSP, you don't find the foreground/background gradient (Corel_06_029).
You can use the gradients of the older versions.
The Gradient of CorelX here

Copy the preset in the folder of the plugins Alien Skin Eye Candy 5.
One or two clic on the file (it depends by your settings), automatically the preset will be copied in the right folder.
why one or two clic see here


1. Set your foreground color to #2591d5,
and your background color to #96cece.

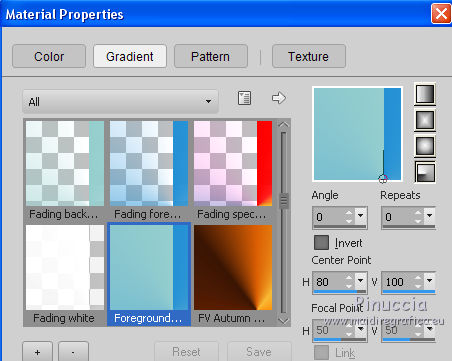

Set your foreground color to a Foreground/Background Gradient, style Radial.



2. Open ImagAlfa_VENTANA AL MAR.
Window>Duplicate, or on the keyboard shift+D to make a copy.



Close the original.
The copy, which will be the base of your work, is not empty, but contains the selections saved on the alpha channel.

Flood Fill the transparent image with your Gradient.

3. Adjust>Blur>Gaussian Blur - radius 50.

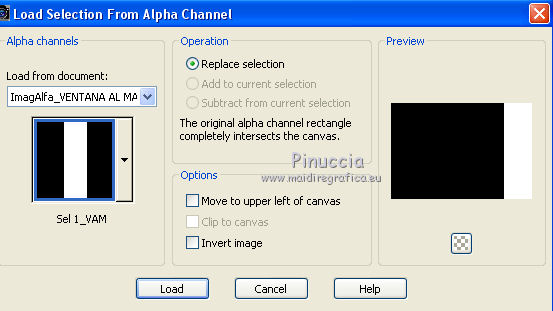

4. Selections>Load/Save Selection>Load Selection from Alpha Channel.
The selection sel 1 VAM is immediately available. You just have to click Load.



Selections>Promote Selection to Layer.
Selections>Select None.

5. Adjust>Blur>Gaussian Blur - radius 50.



6. Effects>Reflection Effects>Rotating Mirror, default settings.

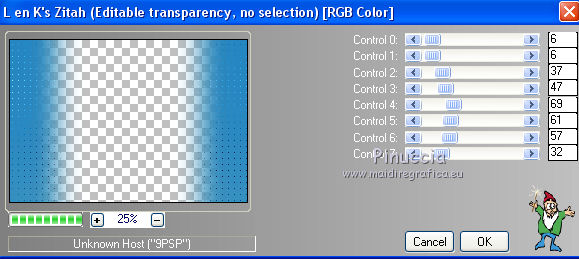

7. Effects>Plugins>L&K's - L&K's Zitah



8. Layers>New Raster Layer.
Selections>Select All.

9. Open the landscape misted - Edit>Copy.
Go back to your work and go to Edit>Paste into Selection.
Selections>Select None.

Adjust>Sharpness>Sharpen.

10. Layers>Duplicate.

11. Effects>Image Effects>Seamless Tiling.



12. Adjust>Blur>Gaussian Blur - radius 40.

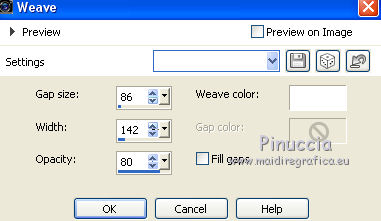

13. Effects>Texture Effects>Weave
Weave color: white

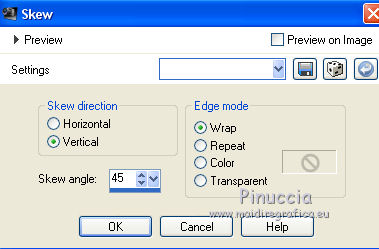

14. Effects>Geometric Effects>Skew.

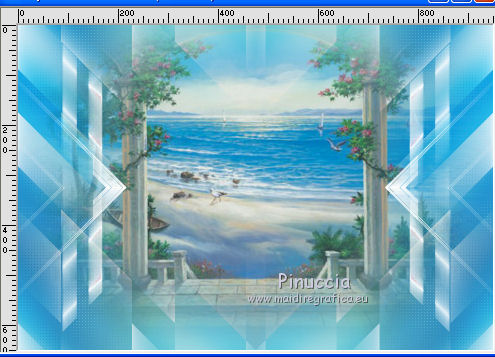

15. Effects>Reflection Effects>Rotating Mirror.



16. Layers>Arrange>Move Down.

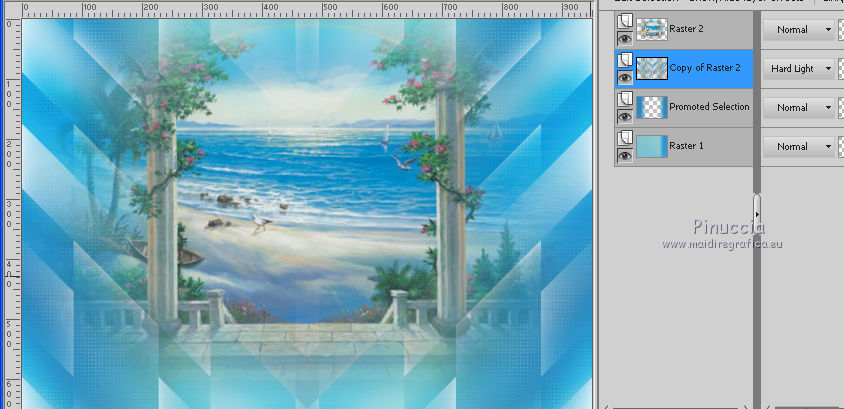

17. Change the Blend mode of this layer to Hard Light.

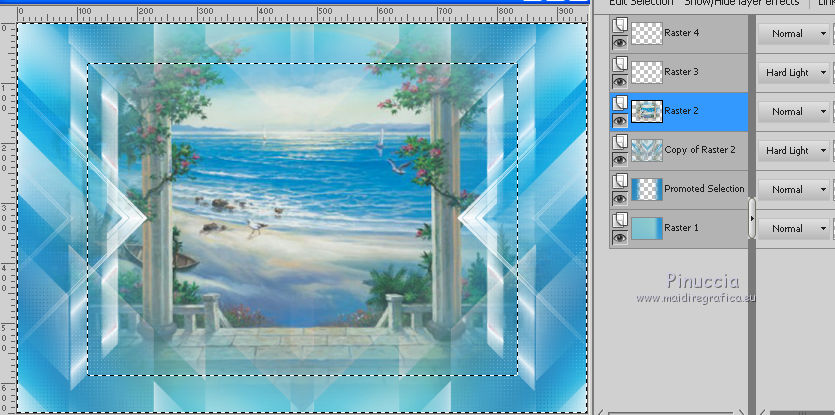

18. Activate the top layer, Raster 2.

19. Open the tube Deco00158©Yedralina - Edit>Copy.
Go back to your work and go to Edit>Paste as a new layer.

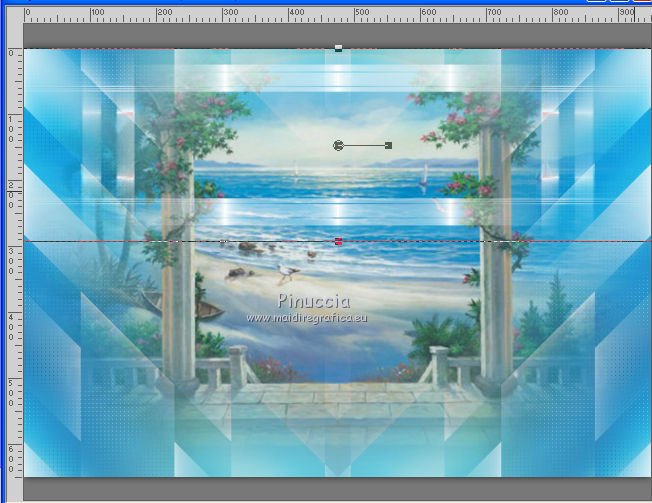

20. Objects>Align>Top.
If your are working with a previous version of PSP that does not have the Objects menu available,
use the Move tool



21. Layers>Duplicate.
Image>Flip.

22. Layers>Merge>Merge Down.

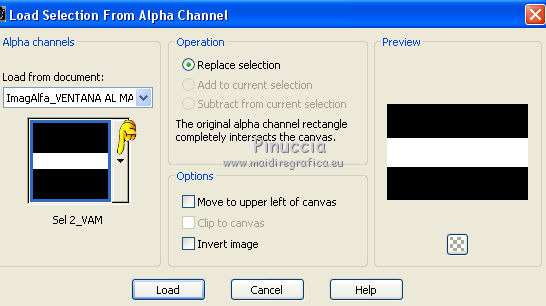

23. Selections>Load/Save Selection>Load Selection from Alpha Channel.
Open the Selections menu and load Sel 2 VAM.



24. Press CANC on the keyboard
Selections>Select None.

25. Effects>Geometric Effects>Skew, same settings.

26. Effects>Reflection Effects>Rotating Mirror, default settings.

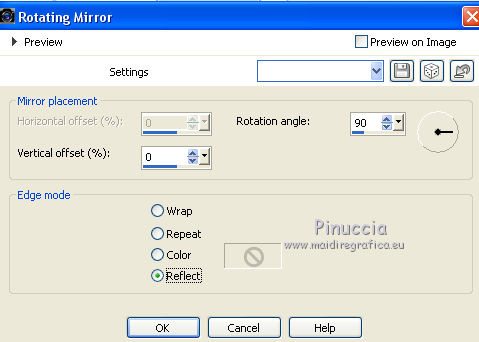

27. Effects>Reflection Effects>Rotating Mirror.

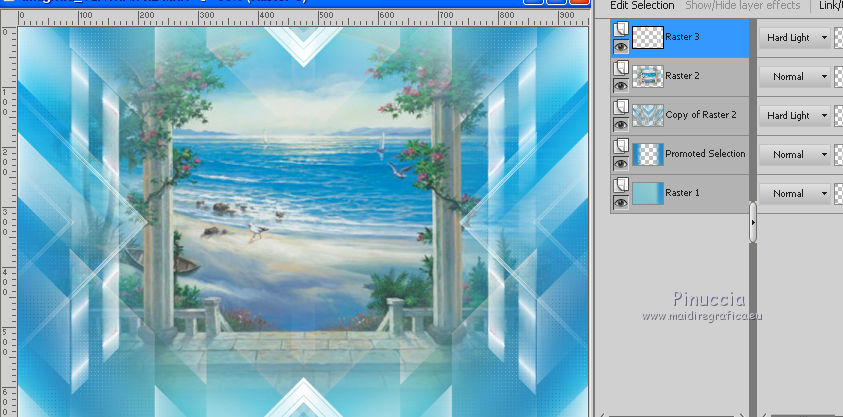

28. Change the Blend Mode of this layer to Hard Light.

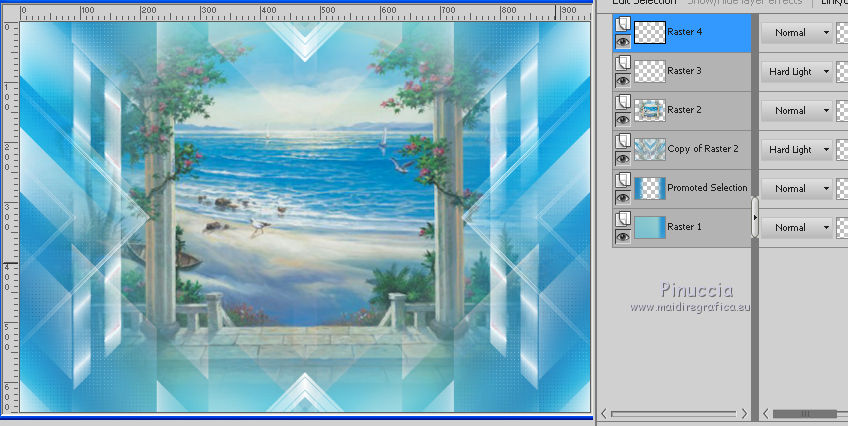

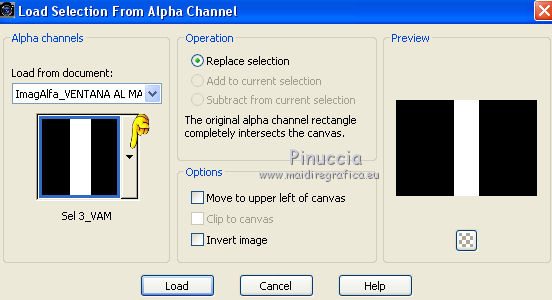

29. Selections>Load/Save Selection>Load Selection from Alpha Channel.
Open the Selections menu and load Sel 3 VAM.



30. Edit>Cut (this command cuts and keeps in memory).



Selections>Select None.

31. Edit>Paste as a new layer.



32. Image>Free Rotate - 90 degrees to left.

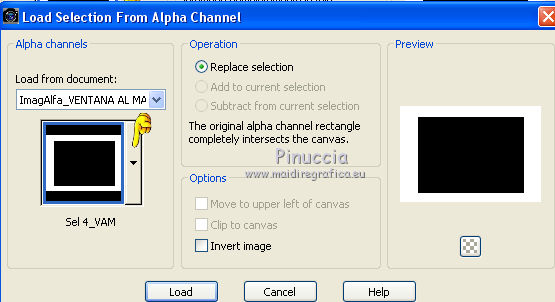

33. Selections>Load/Save Selection>Load Selection from Alpha Channel.
Open the Selections menu and load Sel 4 VAM.



34. Activate the landscape layer, Raster 2.



Press CANC on the keyboard
Selections>Select None.

35. Activate the bottom layer, Raster 1.

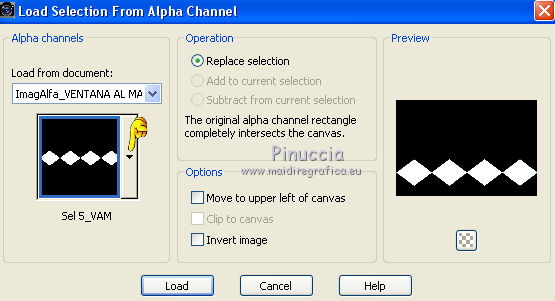

Selections>Load/Save Selection>Load Selection from Alpha Channel.
Open the Selections menu and load Sel 5 VAM.



Selections>Promote Selection to layer.

36. Effects>3D Effects>Drop Shadow, color black.



Selections>Invert.

Repeat Effects>3D Effects>Drop Shadow, same settings.
Selections>Select None.

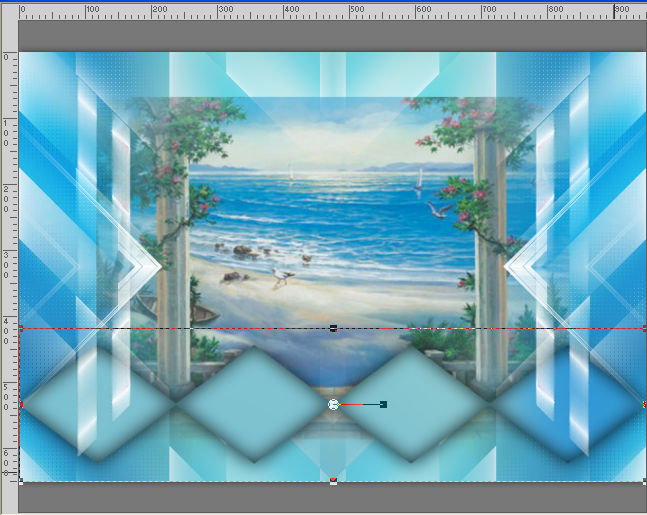

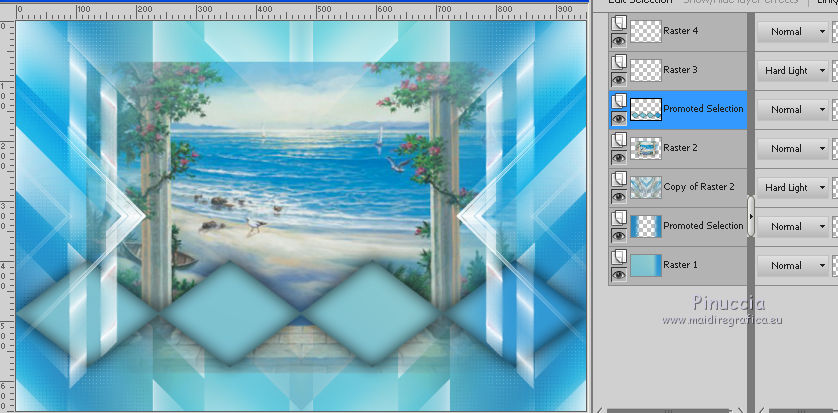

37. Layers>Arrange>Move Up - 3 times.



Objects>Align>Bottom.



38. Image>Mirror.

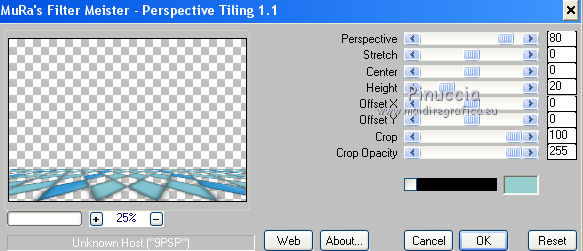

39. Effects>Plugins>Mura's Meister - Perspective Tiling.

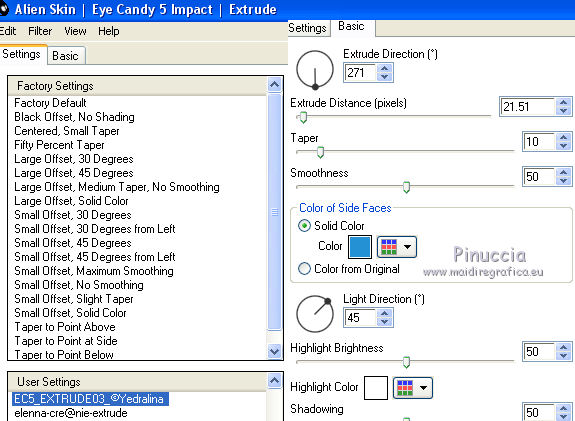

40. Effects>Plugins>Alien Skin Eye Candy 5 Impact - Extrude.
Select the preset EC5_EXTRUDE03_©Yedralina and ok.
Basic: Solid color: your dark color.



41. Layers>New Raster Layer.
Layers>Arrange>Bring to Top.

Set your foreground color to Color.
Flood Fill the layer with your dark foreground color.

42. Selections>Select All.
Selections>Modify>Contract - 20 pixels.
Press CANC on the keyboard.

43. Effects>3D Effects>Drop Shadow, color black.



44. Selections>Select All.
Selections>Modify>Contract - 5 pixels.

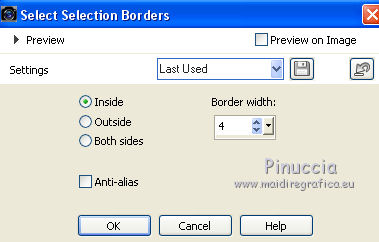

45. Selections>Modify>Select Selections border.



46. Flood Fill the selection with your light background color.

47. Effects>Texture Effects>Weave, same settings.

Selections>Select None.

48. Open your main tube - Edit>Copy.
Go back to your work and go to Edit>Paste as new layer.
Image>Resize, if it is necessary, resize all layers not checked.
Move the tube to the right side.

Effects>3D Effects>Drop Shadow, at your choice.

49. Sign your work on a new layer.

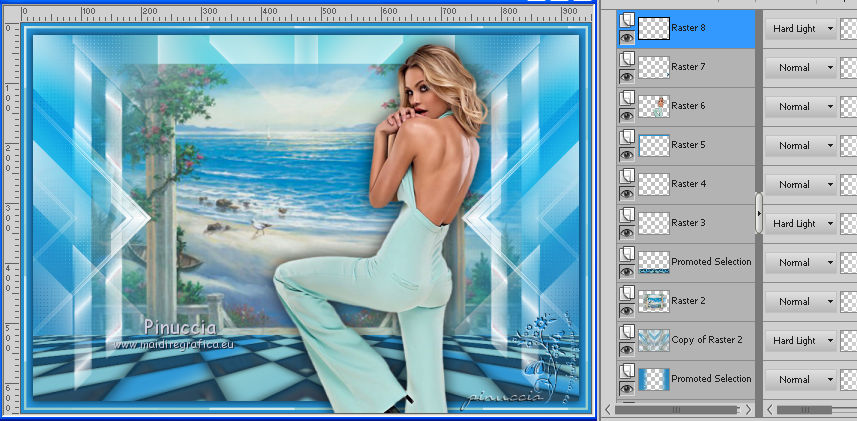

You should have this



50. Layers>Merge>Merge All and save as jpg.

The tubes of this version are by Mina



divisorio


If you have problems or doubts, or you find a not worked link, or only for tell me that you enjoyed this tutorial, write to me.
My mail is in the menu on the top of the page.

7 June 2017
