This tutorial was written with Psp2022 and translated with PspX7, but it can also be made using other versions of PSP.
Since version PSP X4, Image>Mirror was replaced with Image>Flip Horizontal,
and Image>Flip with Image>Flip Vertical, there are some variables.
In versions X5 and X6, the functions have been improved by making available the Objects menu.
In the latest version X7 command Image>Mirror and Image>Flip returned, but with new differences.
See my schedule here



For this tutorial, you will need:



The material is by Inacia.
(The links of the tubemakers here).



Plugins
consult, if necessary, my filter section here
Filters Unlimited 2.0 here
Jeux de ligne - Entrelacement here
Simple - Top Left Mirror here
Filters Jeux de ligne and Simple can be used alone or imported into Filters Unlimited.
(How do, you see here)
If a plugin supplied appears with this icon it must necessarily be imported into Unlimited

You can change Blend Modes according to your colors.

In the newest versions of PSP, you don't find the foreground/background gradient (Corel_06_029).
You can use the gradients of the older versions.
The Gradient of CorelX here



1. Choose 2 colors from your landscape tube.
For me:
Set your foreground color to the light color #e9bd42,
and your background color to the dark color #2d261e.

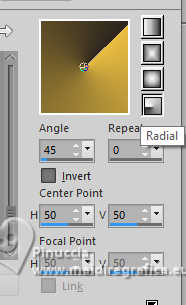

Set your foreground color to a Foreground/Background Gradient, style Radial.



2. Open a new transparent image 1000 x 600 pixels.
Flood Fill the transparent image with your Gradient.

Adjust>Blur>Gaussian Blur - radius 30.



3. Layers>New Raster Layer.
Selections>Select All.

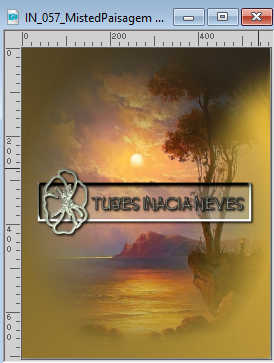

Open your landscape misted IN_057_MistedPaisagem

Edit>Copy.
Go back to your work and go to Edit>Paste into Selection.
Selections>Select None.

4. Adjust>Sharpness>Sharpen More.

Effects>Image Effects>Seamless Tiling, default settings.

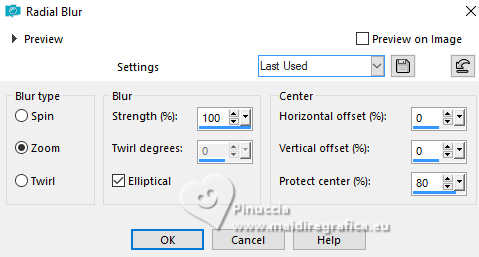

Adjust>Blur>Radial Blur.



Effects>Edge Effects>Enhance More.

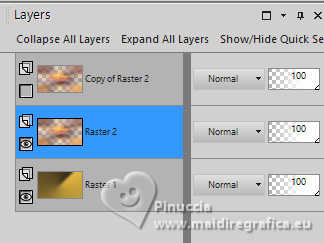

5. Layers>Duplicate.

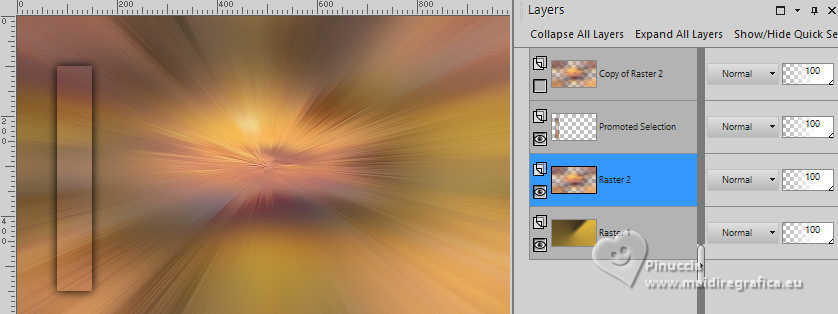

Close this layer and attivate the layer below, Raster 2.



6. Selection Tool
(no matter the type of selection, because with the custom selection your always get a rectangle)
clic on the Custom Selection
and set the following settings.



Selections>Promote Selection to Layer.

Effects>3D Effects>Drop Shadow, color black.



Selections>Select None.

7. Activate the layer Raster 2.



Custom Selection

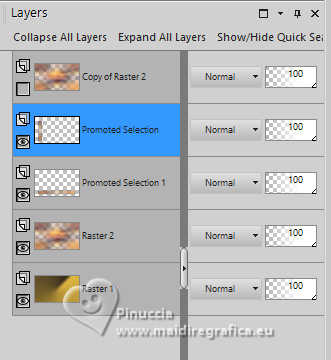

Selections>Promote Selection to Layer.

Effects>3D Effects>Drop Shadow, same settings.



Selections>Select None.

Activate the layer Promoted Selection.



Layers>Merge>Merge Down.

8. Effects>Image Effects>Seamless Tiling, default settings.



Layers>Duplicate.

Image>Mirror>Mirror horizontal (Image>Mirror).
Image>Mirror>Mirror vertical (Image>Flip).

Layers>Merge>Merge Down.

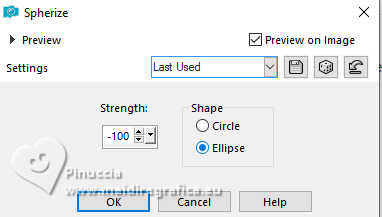

Effects>Geometric Effects>Spherize.

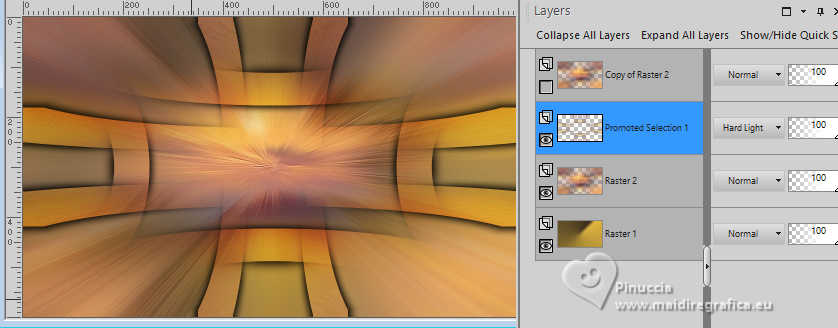

Change the Blend Mode of this layer to Hard Light.

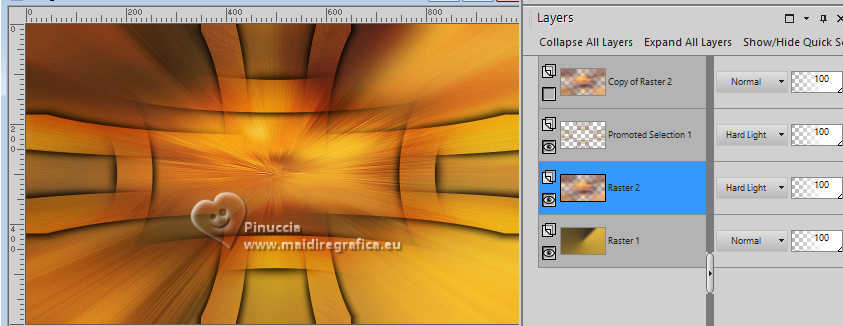

9. Activate the layer Raster 2.
Change the Blend Mode of this layer to Hard Light.



Layers>Duplicate.

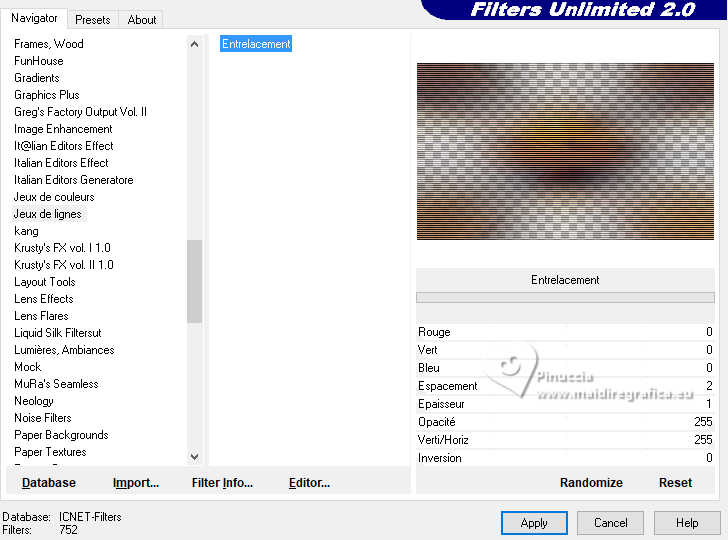

Effects>Plugins>Filters Unlimited 2.0 - Jeux de lignes - Entrelacement, default settings.

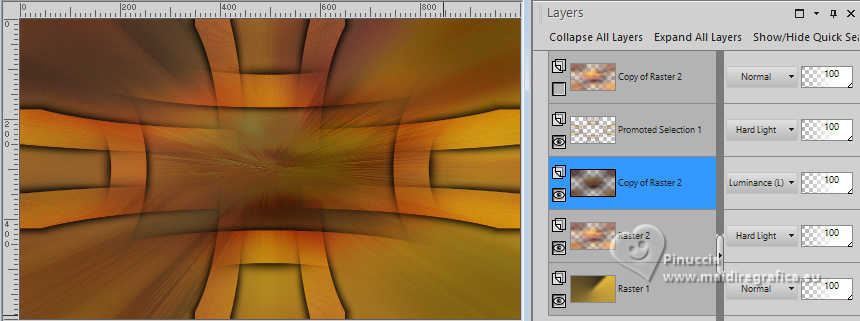

Change the Blend Mode of this layer to Luminance (legacy).



10. Edit>Paste as new layer (your landscape is still in memory).

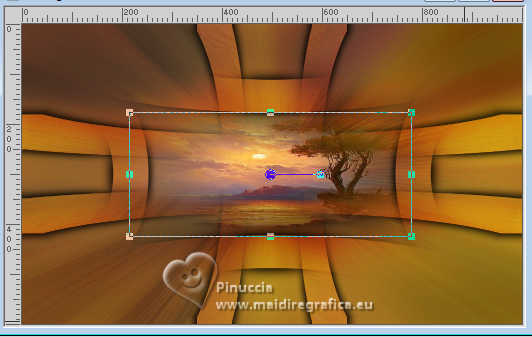

Activate your Pick Tool
and adapt the landscape in the centre of the effects.



Adjust>Sharpness>Sharpen More.

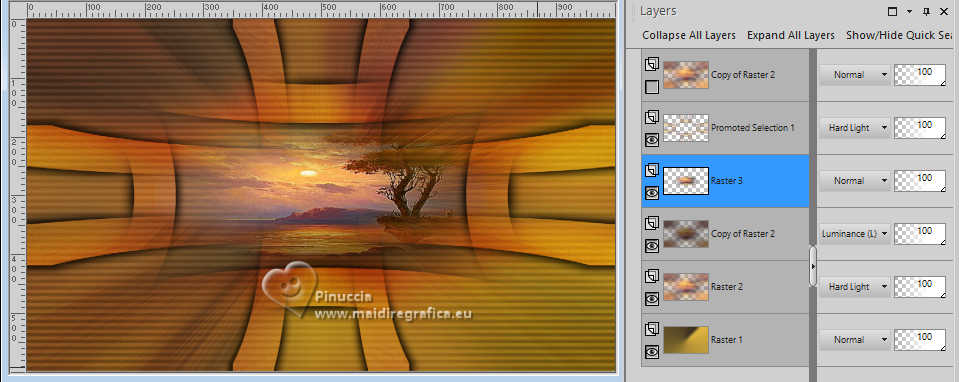

11. Open and activate the top layer, Copy of Raster 2.

Effects>Geometric Effects>Circle



Image>Resize, to 25%, resize all layers not checked.

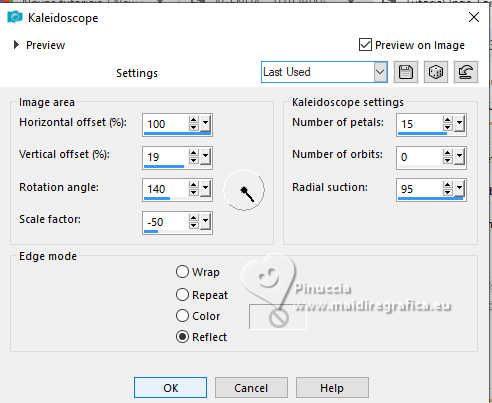

12. Effects>Reflection Effects>Kaleidoscope.

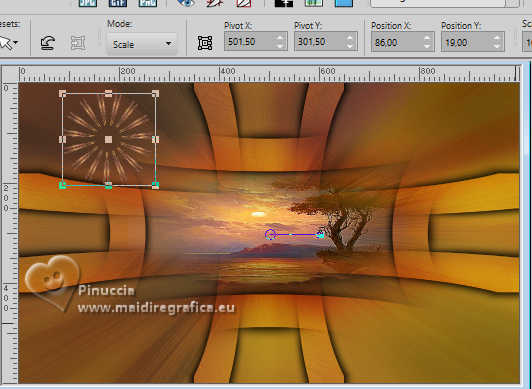

K key to activate your Pick Tool
and set Position X: 86,00 and Position Y: 19,00.



M key to deselect the Tool.

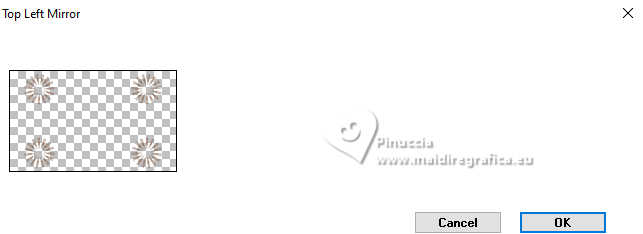

Effects>Plugins>Simple - Top Left Mirror.



Effects>3D Effects>Drop Shadow, same settings.



Change the Blend Mode of this layer to Hard Light.

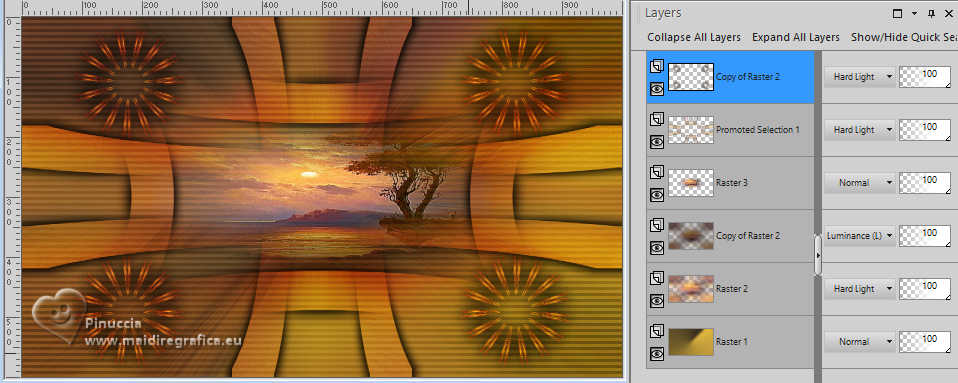

13. Your tag and the layers



14. Image>Add borders, 2 pixels, symmetric, dark color #2d261e.
Image>Add borders, 4 pixels, symmetric, symmetric, light color #e9bd42.
Image>Add borders, 2 pixels, symmetric, dark color #2d261e.

Selections>Select All.

Edit>Copy

15. Image>Add borders, 50 pixels, symmetric, whatever color.
Selections>Invert.

Edit>Paste into Selection

Adjust>Blur>Gaussian Blur - radius 30.

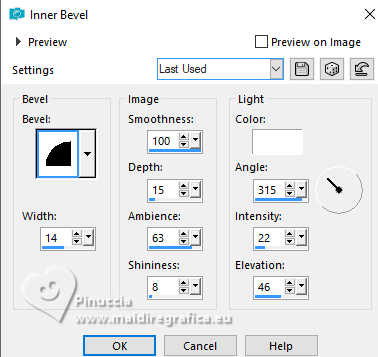

Effects>3D Effects>Inner Bevel.



Selections>Select None.

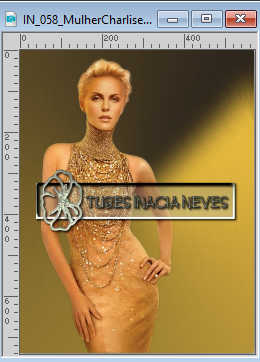

16. Open your main tube IN_058_MulherCharlise

Edit>Copy.
Go back to your work and go to Edit>Paste as new layer.

Image>Resize and Sharpen, if necessary - for the supplied tube it is not.

Move the tube to the left.

Effects>3D Effects>Drop shadow, or effects at your choice.

16. Open the text WA IngeLore_titulo_Inacia.png
or use the supplied font to write your text.

Edit>Copy.
Go back to your work and go to Edit>Paste as new layer.

Move the tube to your liking.

Effects>3D Effects>Drop shadow, or effects at your choice.

18. Image>Add borders, 1 pixel, symmetric, color black #000000.

19. Image>Resize, if you want, resize all layers checked.

Sign your work and save as jpg.

For the tubes of this version thanks Renée and Leny.






Your versions. Thanks



Jolcsi



Marisella



DeniseD



Louise






If you have problems or doubts, or you find a not worked link, or only for tell me that you enjoyed this tutorial, write to me.

14 February 2024
