This tutorial, created with PSP2022, was translated with PspX7, but it can also be made using other versions of PSP.
Since version PSP X4, Image>Mirror was replaced with Image>Flip Horizontal,
and Image>Flip with Image>Flip Vertical, there are some variables.
In versions X5 and X6, the functions have been improved by making available the Objects menu.
In the latest version X7 command Image>Mirror and Image>Flip returned, but with new differences.
See my schedule here


French Translation here
Your versions here






For this tutorial, you will need:



For the tubes thanks Tocha, Luz Cristina, MtmBrigitte
(The links of the tubemakers here).






consult, if necessary, my filter section here
Filters Unlimited 2.0 here
FM Tile Tools - Saturation Emboss, Blend Emboss here
Mura's Meister - Perspective Tiling here
Neology - Blend Mosaic here
Filters Neology can be used alone or imported into Filters Unlimited.
(How do, you see here)
If a plugin supplied appears with this icon it must necessarily be imported into Unlimited







You can change Blend Modes according to your colors.

In the newest versions of PSP, you don't find the foreground/background gradient (Corel_06_029).
You can use the gradients of the older versions.
The Gradient of CorelX here



Copy the Emboss 3 in the Presets Folder.

Open the mask in PSP and minimize it with the rest of the material.

1. Open a new transparent image 1000 x 600 pixels.

2. Set your foreground color to #e5bc92,
and your background color to #3f513b.

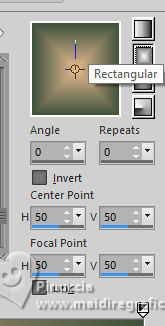

Set your foreground color to a Foreground/Background Gradient, style Rectangular



Flood Fill the transparent image with your Gradient.

3. Selections>Select All.

Open the misted 1316-luzcristina

Edit>Copy.
Go back to your work and go to Edit>Paste into Selection.
Selections>Select None.

4. Effects>Geometric Effects>Pentagon.

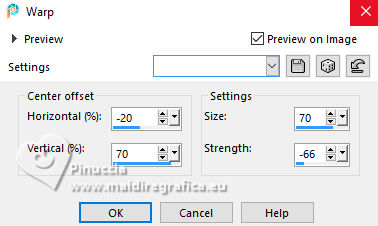

5. Effects>Distortion Effects>Warp.



6. Effects>Plugins>FM Tile Tools - Saturation Emboss, default settings.

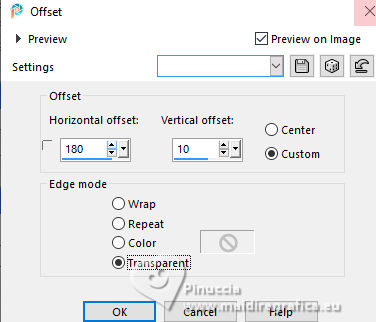

7. Effects>Image Effects>Offset.



8. Layers>Duplicate.
Image>Mirror>Mirror horizontal.

9. Layers>Merge>Merge visible.

10. Layers>New Mask layer>From image
Open the menu under the source window and you'll see all the files open.
Select the mask Mask_FadeSuave.



Layers>Duplicate, to apply the mask 2 times.
Layers>Merge>Merge Group.

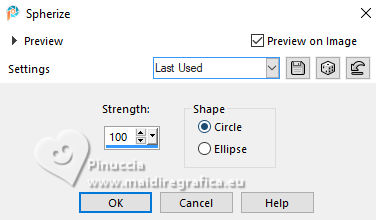

11. Effects>Geometric Effects>Spherize



12. Effects>3D Effects>Drop Shadow.



13. Edit>Paste as new layer (the misted is always in memory).

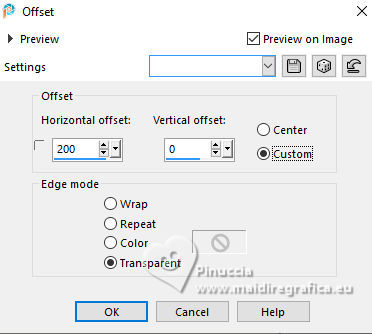

14. Effects>Image Effects>Offset.



Layers>Merge>Merge Down.

15. Layers>Duplicate.
Image>Mirror>Mirror horizontal.
Layers>Merge>Merge Down.

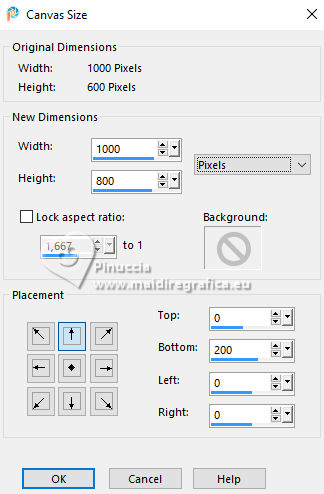

16. Image>Canvas Size - 1000 x 800 pixels.



17. Layers>New Raster Layer.
Layers>Arrange>Send to Bottom.

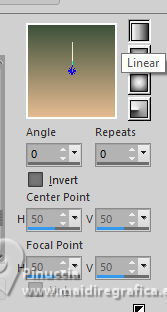

Change the settings of your Gradient, style Linear.



Flood Fill the layer with your Gradient.

18. Image>Mirror>Mirror vertical (Image>Flip).
Layers>Duplicate.

19. Effects>Plugins>Neology - Blend Mosaic.



20. Effects>User Defined Filter - select the preset Emboss 3 and ok.



Edit>Repeat User Defined Filter.

21. Effects>Plugins>FM Tile Tools - Blend Emboss, default settings.



Effects>Edge Effects>Enhance.

22. Effects>Plugins>Mura's Meister - Perspective Tiling.



23. Activate your Magic Wand Tool



click in the transparent part to select it.

Click 10 times CANC on the keyboard

Selections>Select None.

24. Activate your bottom layer, Raster 2.

Effects>Plugins>Filters Unlimited 2.0 - Paper Textures - Mineral paper limes limestone.



25. Activate the layer above of Mura's filter.
Layers>Merge>Merge Down.

Change the Blend Mode of this layer to Hard Light or Overlay.

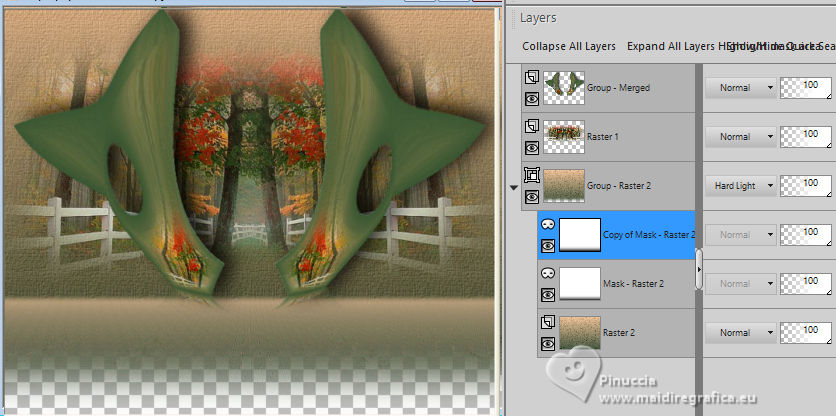

26. Layers>New Mask layer>From image
Open the menu under the source window
and select the mask Mask_FadeSuave.



Layers>Duplicate, to apply the mask 2 times.



Layers>Merge>Merge Group.

27. Layers>New Raster Layer.
Layers>Arrange>Send to Bottom.
Flood Fill the layer with the Linear Gradient.

Image>Mirror>Mirror Vertical (Image>Flip).

28. Activate your top layer.

Open the tube Tocha23957

Edit>Copy.
Go back to your work and go to Edit>Paste as new layer.
Move the tube a little down.

Effects>3D Effects>Drop Shadow.



29. Open the tube Mtm-tagst....

Edit>Copy.
Go back to your work and go to Edit>Paste as new layer.
Move the tube at the bottom right.

Effects>3D Effects>Drop Shadow, at your choice.

30. Sign your work on a new layer.
Layers>Merge>Merge All and save as jpg.

Version with tubes by Luz Cristina and Nena Silva








If you have problems or doubts, or you find a not worked link,
or only for tell me that you enjoyed this tutorial, write to me.

20 March 2025
