TUTORIAL 101

english version

Thank you Sweety for your invitation to translate your tutorial.
Here you find the original of this tutorial:

Clic and move the brush to follow the tutorial.


To print


This tutorial is a personal creation of Sweety and it is prohibited to copy or distribute it on the net (forums, groupes.. etc), or to use it on commercials sites.
This tutorial was created with CorelX12 and translated with Corel13, but it can also be made using other versions of PSP.
Since version PSP X4, Image>Mirror was replaced with Image>Flip Horizontal,
and Image>Flip with Image>Flip Vertical, there are some variables.
In versions X5 and X6, the functions have been improved by making available the Objects menu.
In the latest version X7 command Image>Mirror and Image>Flip returned, but with new differences.
See my schedule here



For this tutorial, you will need:
A person tube and a landscape
The rest of material here
The tube of my version is by Mina.


Plugins
consult, if necessary, my filter section here
Filters Unlimited 2.0 here
Simple - Zoom out and flip here
Alien Skin Eye Candy 5 Impact - Glass here
Filters Simple can be used alone or imported into Filters Unlimited.
(How do, you see here)
If a plugin supplied appears with this icon it must necessarily be imported into Unlimited




You can change Blend Modes according to your colors.

Copy the preset in the folder of the plugin Alien Skin Eye Candy 5 Impact>Settings>Glass.
One or two clic on the file (it depends by your settings), automatically the preset will be copied in the right folder.
why one or two clic see here

Copy the selections in the Selection Folder.

Choose 2 colors according to your landscape tube.

Set your foreground color with your dark color.
Set your background color with your light color.
For me:
foreground color #814938,
background color #fcedd0.



1. Open a new transparent image 950 x 600 pixels.

Selections>Select All.
Open your landscape tube - Edit>Copy.
Go back to your work and go to Edit>Paste into Selection.
Selections>Select None.

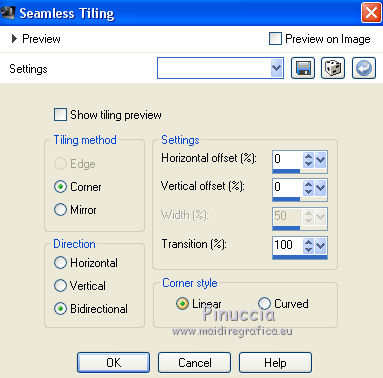

Effects>Image Effects>Seamless Tiling.

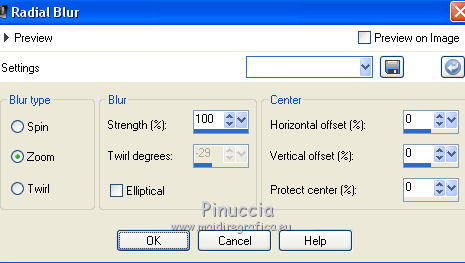

Adjust>Blur>Radial Blur.



2. Layers>Duplicate.
Selections>Select All.
Layers>New Raster Layer.

Edit>Paste into Selection (your landscape is still in memory)
Selections>Select None.

Reduce the opacity of this layer to 50%.

Layers>Merge>Merge down.

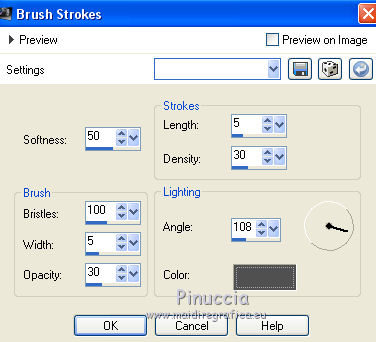

Effects>Art Media Effects>Brush Strokes



Effects>Geometric Effects>Circle



Image>Resize, to 80%, resize all layers not checked.

3. On this layer:

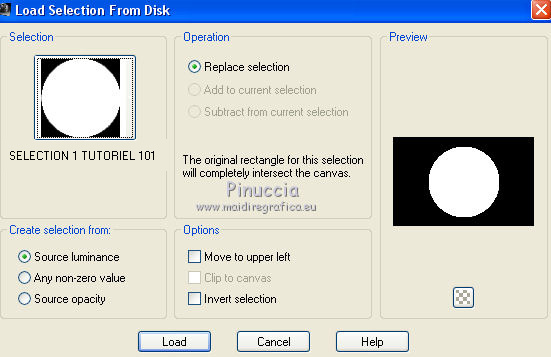

Selections>Load/Save Selection>Load Selection from Disk.
Look for and load the sélection#1



Selections>Modify>Contract - 50 pixels.

Layers>New Raster Layer.
Edit>Paste into Selection (your landscape is always in memory).

Selections>Invert.

Effects>3D Effects>Drop Shadow, color black.



Selections>Invert.
Selections>Modify>Contract - 25 pixels.

Press CANC on the keyboard

Selections>Modify>Contract - 25 pixels.

Layers>New Raster Layer.
Edit>Paste into Selection (your landscape is still in memory).

Selections>Invert.
Effects>3D Effects>Drop Shadow, same settings.

Selections>Select None.

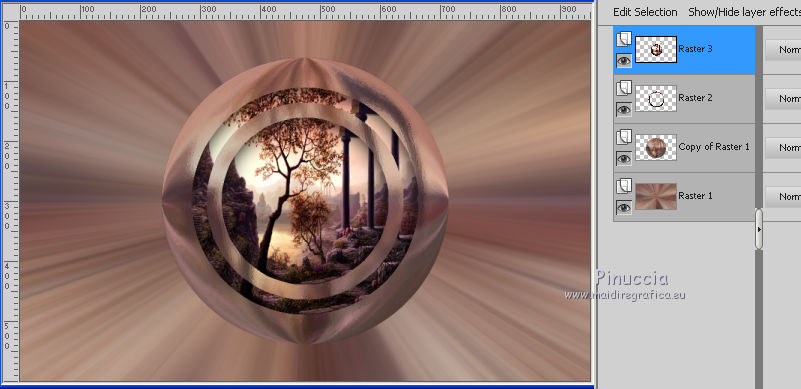

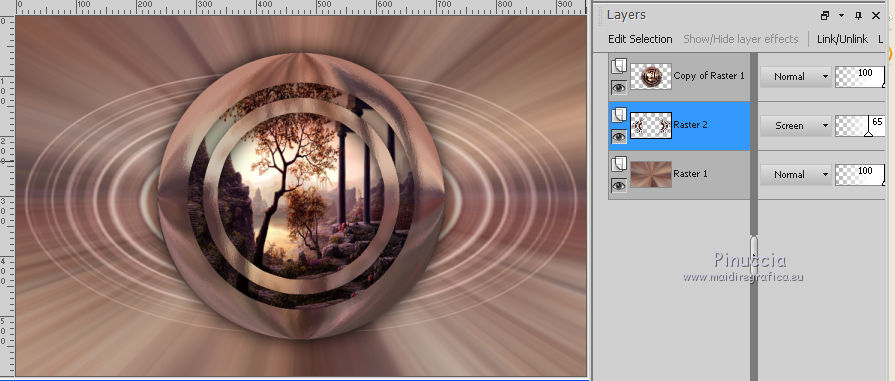

4. You should have this



Stay on the top layer (Raster 3).

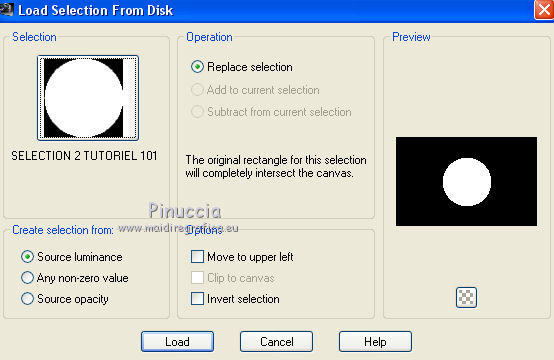

Selections>Load/Save Selection>Load Selection from Disk.
Look for and load sélection#2.



Effects>3D Effects>Drop Shadow, same settings, still in memory.

Selections>Select None.

Layers>Merge>Merge down - 2 times.

Effects>3D Effects>Drop Shadow, same settings.

5. Open the tube déco perso 1 - Edit>Copy.
Go back to your work and go to Edit>Paste as new layer.
Don't move it. It is in the right position.
Layers>Arrange>Move down.

Adjust>Hue and Saturation>Colorize with your colors.

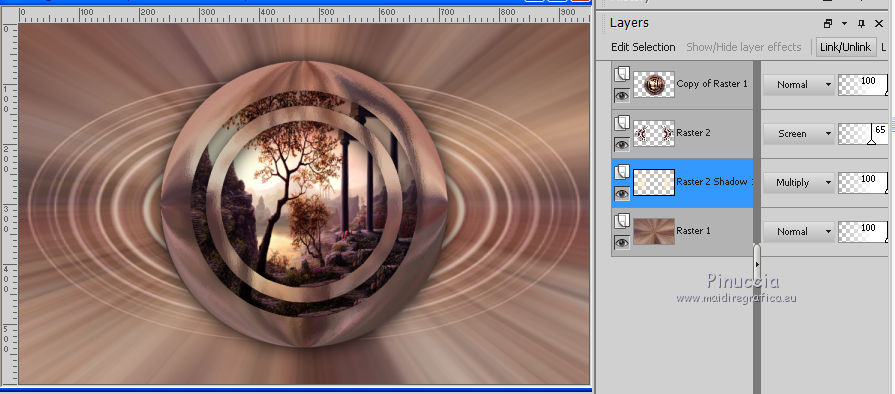

I change the blend mode of this layer to Screen, opacity 65% (you are free to do as you like better)



Effects>3D Effects>Drop Shadow, foreground color and shadow on a new layer checked.



Change the Blend mode of the shadow layer to Multiply (ou as you like)



(for my second version I put the layer tu Luminance (legacy)).

6. Activate the top layer - Copy of Raster 1.

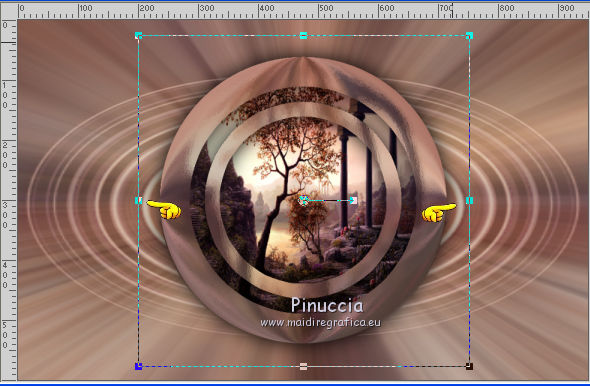

K key to activate the Pick tool
Mode Scale

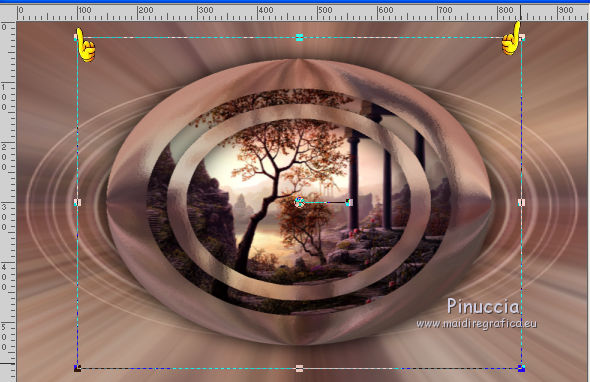

and push the central left and right nodes



to 100 pixels left and about 840 pixels right.



M key to deselect the tool.

Open the tube déco perso 2 - Edit>Copy.
Go back to your work and go to Edit>Paste as new layer.
Don't move it. It is in the right position.

Image>Add borders, 3 pixels, symmetric, background color.

7. Selections>Select All.

Image>Add border, 60 pixels, symmetric, background color.

Edit>Copy.
Edit>Paste as new image (for caution)
Minimize this image and go back to your work.

Effects>Image Effects>Seamless Tiling.



Effects>3D Effects>Drop Shadow, color black.



Selections>Promote Selection to Layer.
Selections>Select None.

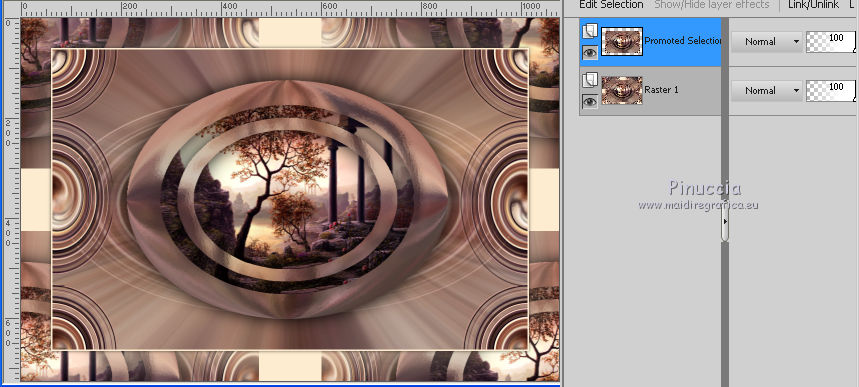

You should have this



8. Activate the bottom layer - Raster 1.

Selection Tool
(no matter the type of selection, because with the custom selection your always get a rectangle)
clic on the Custom Selection
and set the following settings.



Layers>New Raster Layer.
Edit>Paste into Selection (the image minimize at step 7 is still in memory).

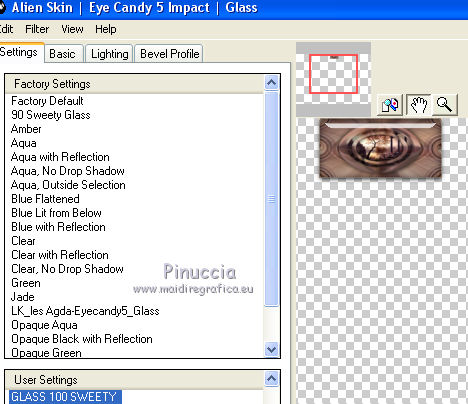

Effects>Plugins>Alien Skin Eye Candy 5 Impact - Glass.
Select the preset

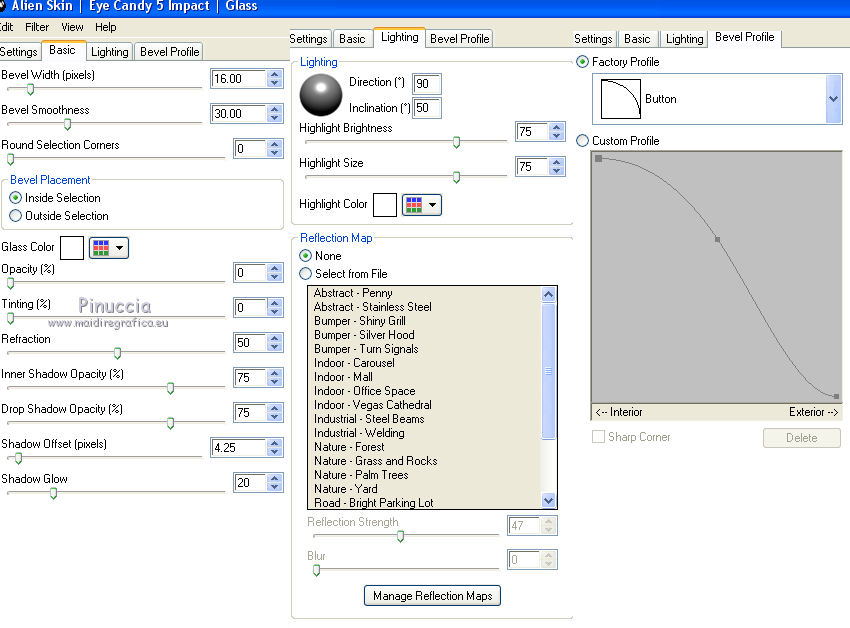

Below the settings, in case of problems with the preset.



Selections>Select None.

Layers>Duplicate.
Image>Flip.

Layers>Merge>Merge down.

9. Activate again the bottom layer - Raster 1.

Custom Selection



Layers>New Raster Layer.
Edit>Paste into Selection (the image of step 7 is still in memory).

again Effects>Plugins>Alien Skin Eye Candy 5 Impact - Glass, same settings.

Selections>Select None.

Layers>Duplicate.
Image>Mirror.

Layers>Merge>Merge down.

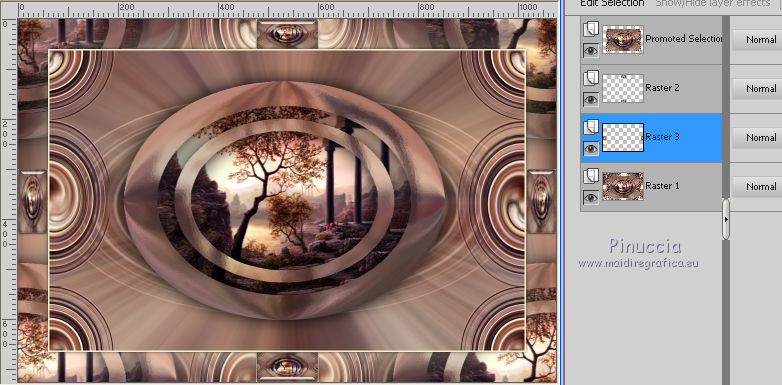

10. You shoud have this.



Activate again the bottom layer - Raster 1.

Selections>Select All.
Selections>Modify>Contract - 60 pixels.

Selections>Invert.
Selections>Promote Selection to layer.

Effects>Art Media Effects>Brush Strokes, as step 2 (still in memory)



Selections>Invert.

Effects>3D Effects>Drop Shadow, color black.



Selections>Select None.

Image>Add borders, 3 pixels, symmetric, background color.

11. Selections>Select All.

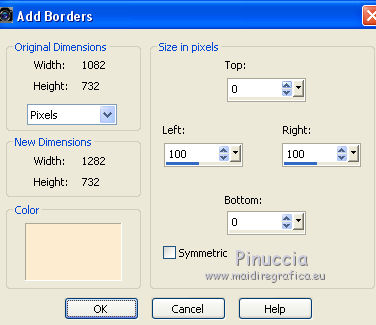

Image>Add borders, background color, symmetric not checked.



Selections>Invert.
Selections>Modify>Contract - 3 pixels.

Edit>Paste into Selection (the image of step 7 should be still in memory).

Effects>Plugins>Simple - Zoom out and flip.

Selections>Select None.

12. Selections>Select All.
Edit>Copy.

Image>Add borders, 50 pixels, symmetric, don't matter the color.

Selections>Invert.
Edit>Paste into Selection.

Adjust>Blur>Radial Blur, same settings.



Selections>Promote selection to layer.
Selections>Select None.

Open the tube déco perso 3 - Edit>Copy.
Go back to your work and go to Edit>Paste as new layer.
Don't move. It is in the right position.
Reduce the opacity of this layer to 75%.

Open the tube déco perso 4 - Edit>Copy.
Go back to your work and go to Edit>Paste as new layer.
Don't move. It is in the right position.
Effects>3D Effects>Drop Shadow, color black.



13. Copy/Paste as new layer your tubes for the final decoration (person or others)
Place as your like and apply a Drop Shadow at your choice.

For my version I used a tube by Mina and resize to 80%.

Open the workdart 003-yoursmile (sharing from groups) - Edit>Copy.
Go back to your work and go to Edit>Paste as new layer.
Image>Resize, 40%, resize all layers not checked.

Image>Negative Image.
Place the wordart at the bottom, see my example.

I put the Blend Mode of this layer to Overlay.

14. Final step.
Image>Add border, 2 pixels, symmetric, background color.
Sign your work.
Image>Resize, 950 pixels width, resize all layers checked.

Save as jpg.

The tube of this version is by Gabry





Your versions. Thanks



Marcita



If you have problems or doubts, or you find a not worked link, or only for tell me that you enjoyed this tutorial, write to me.

14 September 2017
