VENTANA AL OTOÑO



Thanks Yedralina for your invitation to translate your tutorials into english

Clic and move the brush to follow the tutorial.


To print


This tutorial was written with CorelX19 and translated with CorelX17, but it can also be made using other versions of PSP.
Since version PSP X4, Image>Mirror was replaced with Image>Flip Horizontal,
and Image>Flip with Image>Flip Vertical, there are some variables.
In versions X5 and X6, the functions have been improved by making available the Objects menu.
In the latest version X7 command Image>Mirror and Image>Flip returned, but with new differences.
See my schedule here


italian translation here
french translation here
your versions here


For this tutorial, you will need:
Tubes of yours
The rest of the material here
For the tubes thanks Wieskes (wieskes tube 1081) and Tine (misted_paysage17_tine_04.2020-78).
For the mask thanks Valerie (VSP196)
(The links of the tubemakers here).




Plugins:
consult, if necessary, my filter section here
Filters Unlimited 2.0 here
VM Instant Art - Steel Mesh here
Filter Factory Gallery B - Circulator 2 here
Render - ButtonMaker Round (standard in Unlimited)
Graphics Plus - Cross Shadow here
Optional AAA Filters - Custom here
Filters VM Instant Art, Factory Gallery and Graphics Plus can be used alone or imported into Filters Unlimited.
(How do, you see here)
If a plugin supplied appears with this icon it must necessarily be imported into Unlimited






You can change Blend Modes according to your colors.

In the newest versions of PSP, you don't find the foreground/background gradient (Corel_06_029).
You can use the gradients of the older versions.
The Gradient of CorelX here

Open the mask in PSP and minimize it with the rest of the material.

Set your foreground color to #708d33,
and your background color to #e4a02f.

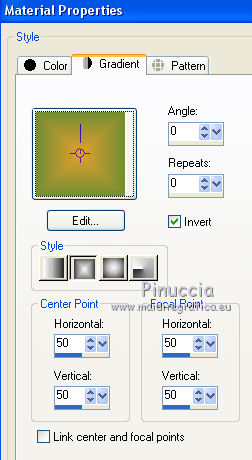

Set your foreground color to a Foreground/Background Gradient, style Rectangular.

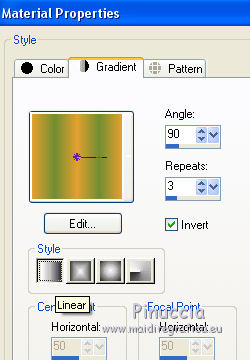

Set your background color to a Foreground/Background Gradient, style Linear.



1. Open Canal Alpha_Ventana al otoño.
Window>Duplicate or, on the keyboard, shift+D to make a copy.



Close the original.
The copy, that will be the basis of your work, is not empty,
but contains the selections saved on the alpha channel.

Flood Fill the transparent image with your Foreground Gradient.

2. Layers>New Raster Layer.
Selections>Select All.

Open the landscape misted and go to Edit>Copy.
Go back to your work and go to Edit>Paste into Selection.
Selections>Select None.

3. Layers>Duplicate.
Close this layer and activate the layer below of the original.

Effects>Image Effects>Seamless Tiling.



Adjust>Blur>Gaussian Blur, radius 15.



4. Activate the bottom layer, Raster 1.

Layers>Duplicate.
Layers>Arrange>Move Up.

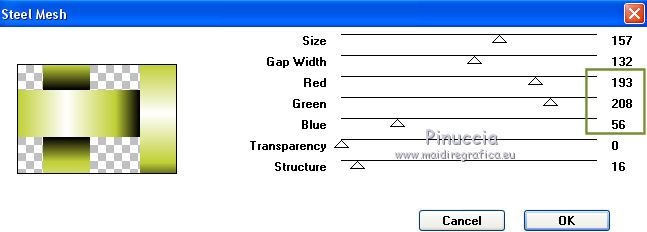

Effects>Plugins>VM Instant Art - Steel Mesh.



adapt the settings Red, Green and Blue to the colors of your work.

Image>Mirror.

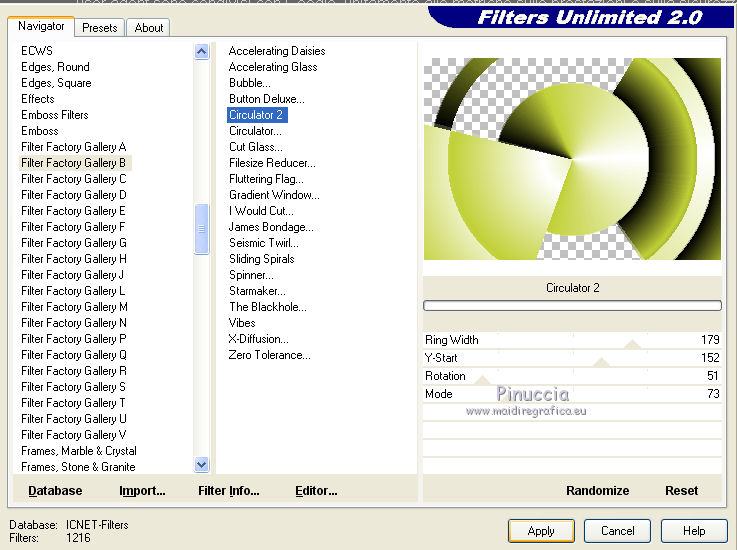

Effects>Plugins>Filters Unlimited 2.0 - Filter Factory Gallery B - Circulator 2, default settings.



Effects>Image Effects>Seamless Tiling



Effects>3D Effects>Drop Shadow, color black.



Effects>Edge Effects>Enhance More.

Change the Blend Mode of this layer to Multiply, or Soft Light,
and reduce the opacity +/- 82%.

5. Layers>New Raster Layer.
Flood Fill with your Linear background Gradient.

Layers>New Mask layer>From image
Open the menu under the source window and you'll see all the files open.
Select the mask VSP196.



Layers>Merge>Merge Group.

6. Stay on this layer.

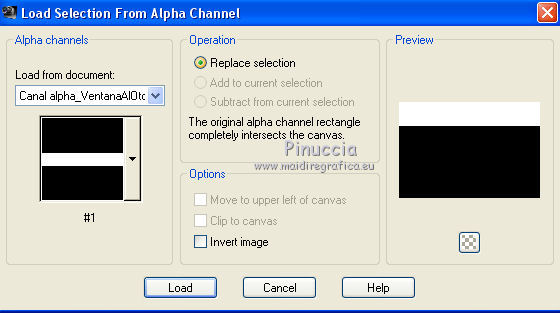

Selections>Load/Save Selection>Load Selection from Alpha Channel.
The selection #1 is immediately available. You just have to click Load.



Press CANC on the keyboard
Selections>Select None.

Effects>Edge Effects>Enhance More.

Change the Blend Mode of this layer to Hard Light.
Stay always on this layer.

7. Selections>Load/Save Selection>Load Selection from Alpha Channel.
Open the Selections menu and load the selection #2.



Press CANC on the keyboard.
Selections>Select None.

8. Activate again your bottom layer, Raster 1.
Layers>Duplicate.
Layers>Arrange>Move Up - 3 times.

Effects>Plugins>Filters Unlimited 2.0 - Render - Button Maker Round.



9. Selections>Load/Save Selection>Load Selection from Alpha Channel.

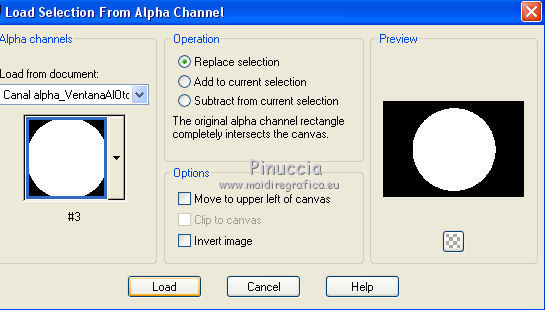

Open the Selections menu and load the selection #3.



Edit>Paste into Selection (the misted of the landscape is still in memory).
Selections>Invert.

Effects>3D Effects>Drop Shadow, color black.



Selections>Select None.

Image>Resize, to 60%, resize all layers not checked.

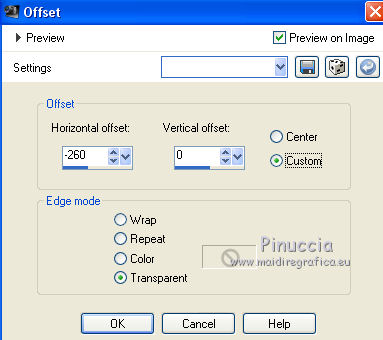

Effects>Image Effects>Offset.



Effects>3D Effects>Drop Shadow, color black.



10. Open and activate the top layer.

Image>Mirror.

Selections>Load/Save Selection>Load Selection from Alpha Channel.
Open the Selections menu and load again the selection #3.



Selections>Modify>Contract - 35 pixels.
Selections>Invert.
Selections>Modify>Feather - 45 pixels.

Press 1-2 times CANC on the keyboard.
Selections>Select None.

Reduce the opacity of this layer to 50%.
Layers>Arrange>Move Down.

11. Open your main tube and go to Edit>Copy.
Go back to your work and go to Edit>Paste as new layer.
Resize, if necessary.
Move the tube to the right side.
Effects>3D Effects>Drop Shadow, at your choice.

12. Image>Add borders, 2 pixels, symmetric, foreground color.
Image>Add borders, 2 pixels, symmetric, background color.
Image>Add borders, 2 pixels, symmetric, foreground color.

Selections>Select All.
Image>Add borders, 20 pixels, symmetric, whatever color.

Selections>Invert.
Flood Fill with your background Gradient.

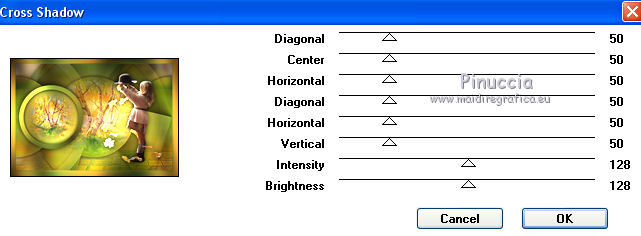

Effects>Plugins>Graphics Plus - Cross Shadow, default settings.



Selections>Select None.

Image>Add borders, 2 pixels, symmetric, foreground color.
Image>Add borders, 2 pixels, symmetric, background color.
Image>Add borders, 2 pixels, symmetric, foreground color.

Edit>Copy.

Image>Add borders, 10 pixels, symmetric, foreground color.

Selections>Select All.
Image>Add borders, 20 pxiels, symmetric, whatever color.
Selections>Invert.
Edit>Paste into Selection.

Selections>Invert.
Effects>3D Effects>Drop Shadow, color black.



Selections>Select None.

13. Image>Resize, 1000 pixels width, resize all layers checked.

Sign your work on a new layer.

14. If you want, add a deco, or use the supplied deco.
You can change the color, according to the colors of your work,
for example with the Plugin Nik Software.

Effects>3D Effects>Drop Shadow, at your choice; for me:



15. Layers>Merge>Merge All.

Optional: Effects>Plugins>AAA Filters - Custom, click on Landscape and ok.

Save as jpg.

Version with tubes by Sonia (SoniaTubes_9452) and Tatie (tubtatie_2043166)



Version with tubes by Yedralina (2063©Yedralina) and Gabry ((Gabry-woman 0-126)



divisorio


If you have problems or doubts, or you find a not worked link, or only for tell me that you enjoyed this tutorial, write to me.

1 October 2020
