Clic and move the image to follow the tutorial. To print

This tutorial, created with PSP2020, was translated with PSPX8, PSPX9 and PSP2020, but it can also be made using other versions of PSP.
Since version PSP X4, Image>Mirror was replaced with Image>Flip Horizontal,
and Image>Flip with Image>Flip Vertical, there are some variables.
In versions X5 and X6, the functions have been improved by making available the Objects menu.
In the latest version X7 command Image>Mirror and Image>Flip returned, but with new differences.
See my schedule here


italian translation here
french translation here
your versions here


Necessary



Thanks the masks Narah.
(The links of the tubemakers here).


Plugins
consult, if necessary, my filter section here
Filters Unlimited 2.0 here
Mock - Bevel here
AP [Lines] here
Simple - Diamonds, Pizza Slice Mirror here
VanDerLee - Unplugged-X here
Filters Mock and Simple can be used alone or imported into Filters Unlimited.
(How do, you see here)
If a plugin supplied appears with this icon it must necessarily be imported into Unlimited



You can change Blend Modes according to your colors.



Copy the selections in the Selections Folder.

Open the masks in PSP and minimize them with the rest of the material.

1. Open a new transparent image 650 x 500 pixels.

Set your foreground color to the light color #88060e
and your background color to the dark color #26517c.



Flood Fill the transparent image with your foreground color.

2. Effects>Plugins>Filters Unlimited 2.0 - Render - Clouds(fore-/background color)



3. Effects>Plugins>Filters Unlimited 2.0 - Mock - Bevel



4. Activate your Selection Tool
(no matter the type of selection, because with the custom selection your always get a rectangle)
clic on the Custom Selection
and set the following settings.



Selections>Promote Selection to Layer.

5. Effects>Plugins>Simple - Diamonds.

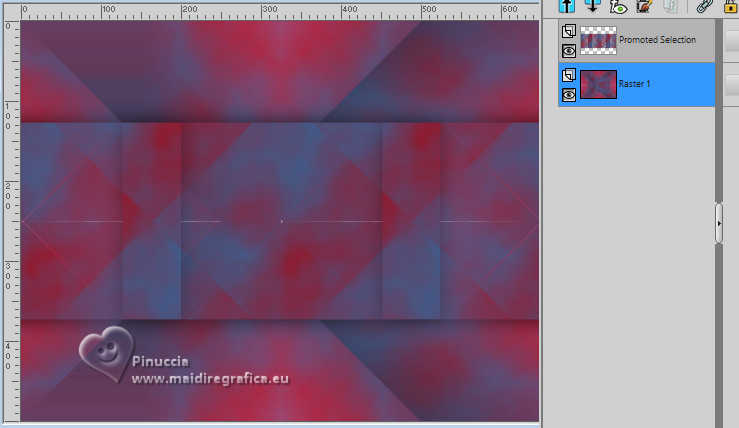

This Effect works without window; result



6. Effects>3D Effects>Drop Shadow, color black.



Selections>Select None.

7. Effects>Image Effects>Seamless Tiling.



8. Activate your bottom layer.

Effects>Plugins>Simple - Pizza Slice Mirror



Effects>Edge Effects>Enhance More.

9. Selections>Select All.

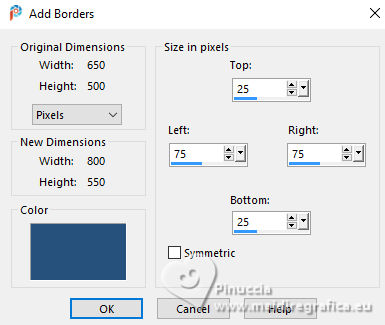

Image>Add Borders, symmetric not checked, background color.



10. Selections>Invert.

Effects>Plugins>Simple - Diamonds

11. Adjust>Blur>Gaussian Blur - radius 20.



12. Effects>Plugins>AP[Lines] - Lines SilverLining



13. Effects>3D Effects>Drop Shadow, same settings.

Selections>Select None.

14. Effects>Image Effects>Seamless Tiling, same settings.



15. Layers>Duplicate.
Image>Mirror>Mirror Horizontal.

16. Change the Blend Mode of this layer to Dissolve
and reduce the opacity to 50%.

Layers>Merge>Merge Down.

16. Selections>Load/Save Selection>Load Selection from Disk.

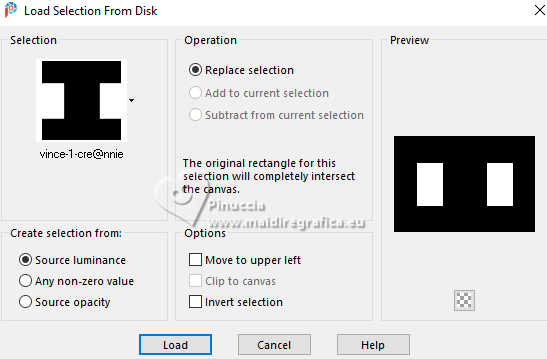

Look for and load the selection vince-1-cre@nnie



Selections>Promote Selection to Layer.

17. Layers>New Raster Layer.
Flood Fill the selection with your background color.

18. Selections>Modify>Contract - 10 pixels.
Press CANC on the keyboard
Selections>Select None.

18. Layers>Merge>Merge Down.

19. Effects>Plugins>VanDerLee - Unplugged-X - Defocus



20. Effects>3D Effects>Drop Shadow, same settings.

Effects>Edge Effects>Enhance More.

21. Selections>Select All.

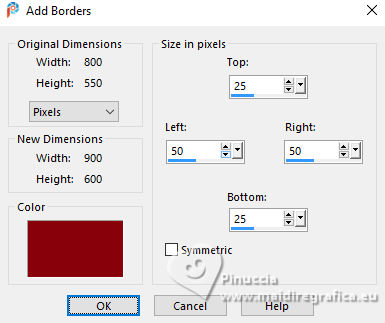

Image>Add Borders, symmetric not checked, foreground color.



22. Selections>Invert.

Effects>Plugins>Filters Unlimited 2.0 - Render - Clouds(fore-/background color), same settings



23. Effects>Plugins>AP[Lines] - Lines SilverLining, same settings.



24. Effects>Distortion Effects>Wind - from right, strength 100



25. Effects>Edge Effects>Enhance More.

Effects>3D Effects>Drop Shadow, same settings.

Selections>Select None.

26. Effects>Image Effects>Seamless Tiling, same settings.



Adjust>Sharpness>Sharpen More.

27. Open the tube deco-vince-1

Edit>Copy.
Go back to your work and go to Edit>Paste as new layer.

Change the Blend Mode of this layer to Dodge.

28. Layers>New Raster Layer.

Selections>Load/Save Selection>Load Selection from Disk.

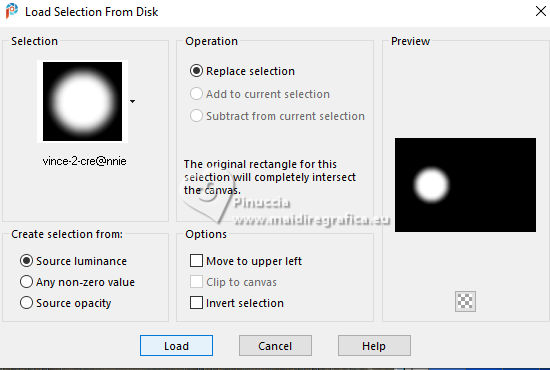

Look for and load the selection vince-2-cre@nnie



28. Open the image A

Edit>Copy.
Go back to your work and go to Edit>Paste into Selection.

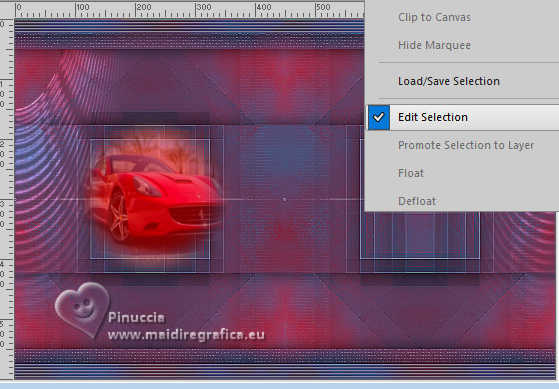

29. Selections>Edit Selection and the selected zone will be red



Image>Mirror>Mirror Horizontal.



Selections>Edit Selection - et the red zone will be back normal



30. Open the B

Edit>Copy.
Go back to your work and go to Edit>Paste into Selection.

Reduce the opacity of this layer to 50%.
Selections>Select None.

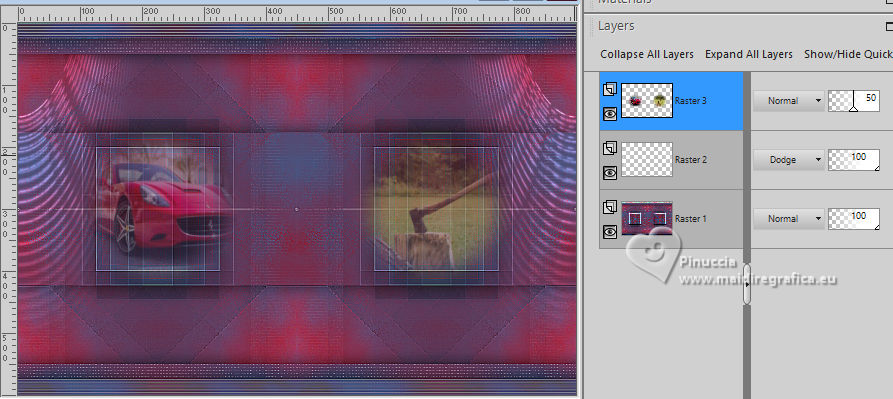

Your should have this



31. Set your foreground color with a different color: #c0cd95.



32. Layers>New Raster Layer.
Flood Fill the layer with your foreground color.

33. Layers>New Mask layer>From image
Open the menu under the source window and you'll see all the files open.
Select the mask Narah_Mask_0392



Layers>Merge>Merge Group.

Effects>Edge Effects>Enhance More.

34. Layers>New Raster Layer.
Flood Fill the layer with your foreground color.

33. Layers>New Mask layer>From image
Open the menu under the source window
and select the mask Narah_Mask_1733



Livelli>Unisci>Unisci gruppo.

34. Layers>Duplicate.
Image>Mirror>Mirror Horizontal.
Image>Mirror>Mirror Vertical (Image>Flip).

35. Layers>Merge>Merge visible.

36. Selections>Load/Save Selection>Load Selection from Disk.

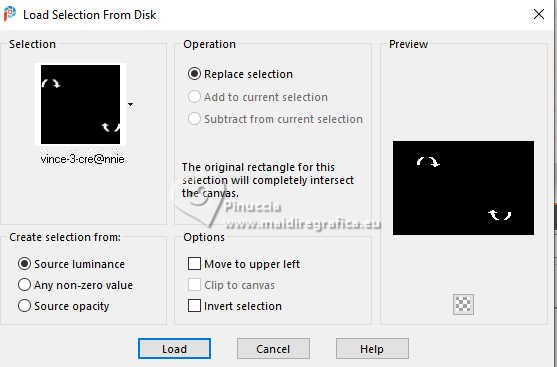

Look for and load the selection vince-3-cre@nnie



Selections>Promote Selection to Layer.

37. Effects>Plugins>AP[Lines] - Lines SilverLining, same settings.



38. Effects>Distortion Effects>Wind, same settings



Effects>Edge Effects>Enhance More.

39. Effects>3D Effects>Drop Shadow, same settings.

Selections>Select None.

40. Activate your bottom layer.
Layers>Duplicate.

Effects>Plugins>Mura's Meister - Perspective Tiling



if you have problems with the filter,
copy/paste as new layer the file punt87
Objects>Align>Bottom

41. Effects>3D Effects>Drop Shadow, same settings.



42. Activate your top layer.

Open the tube vince-pr

Edit>Copy.
Go back to your work and go to Edit>Paste as new layer.

43. K key to activate your Pick Tool
Position X: 332,00 - Position Y: 104,00.



44. Layers>Duplicate.

Adjust>Blur>Gaussian Blur - radius 50



Change the Blend Mode of this layer to Multiply.
Layers>Arrange>Move Down.

45. Open the tube tekst-vince

Edit>Copy.
Go back to your work and go to Edit>Paste as new layer.

46. Position X: 25,00 - Position Y: 158,00



M key to deselect the Tool.

47. Effects>3D Effects>Drop Shadow, color black.



48. Sign your work on a new layer.

49. Image>Add Borders, 1 pixel, symmetric, background color.

50. Image>Resize, 800 pixels width, resize all layers checked.

51. Save as jpg.

Versions with my tubes from Pinterest images








If you have problems or doubts, or you find a not worked link, or only for tell me that you enjoyed this tutorial, write to me.
