This tutorial, created with PSP2022, was translated with PspX9 and 2020, but it can also be made using other versions of PSP.
Since version PSP X4, Image>Mirror was replaced with Image>Flip Horizontal,
and Image>Flip with Image>Flip Vertical, there are some variables.
In versions X5 and X6, the functions have been improved by making available the Objects menu.
In the latest version X7 command Image>Mirror and Image>Flip returned, but with new differences.
See my schedule here


French Translation here
Your versions here






For this tutorial, you will need:



Material created from images Pinterest
(The links of the tubemakers here).






consult, if necessary, my filter section here
Xenofex 1 - Origami here
Carolaine and Sensibility - cs-Texture here






You can change Blend Modes according to your colors.



Copy the selection in the Selections Folder.

Open the masks in PSP and minimize them with the rest of the material.

1. Open a new transparent image 900 x 730 pixels.
Selections>Select All.

2. Open the jpg image grafico.jpg

Edit>Copy.
Go back to your work and go to Edit>Paste into Selection.
Selections>Select None.

3. Effects>Image Effects>Seamless Tiling, default settings.



4. Adjust>Blur>Gaussian Blur - radius 25.

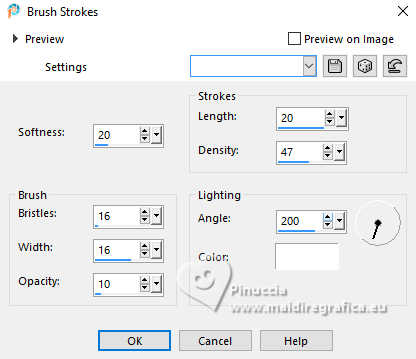

5. Effects>Media Art Effects>Brush Strokes.

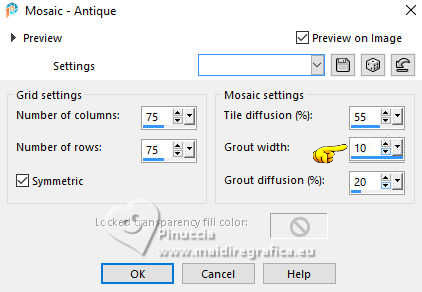

6. Effects>Texture Effects>Mosaic Antique.



Before PSP2022 the maximum value of Grout width was 10;
if you are using an earlier version, keep the value 10.

7. Set your foreground color to white #ffffff.

Layers>New Raster Layer.
Flood Fill the layer with color white.

8. Layers>New Mask layer>From image
Open the menu under the source window and you'll see all the files open.
Select the mask EF-Carnaval_Mask_1.

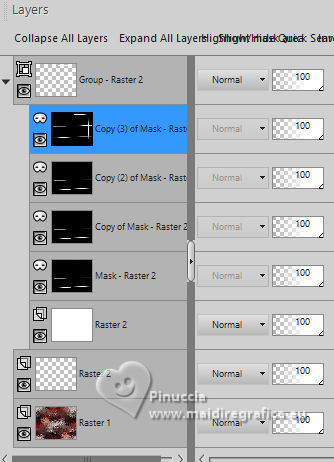

Layers>Duplicate - 3 times.



Layers>Merge>Merge Group.

9. Image>Free Rotate - 15 degrees to left.



Change the Blend Mode of this layer to Soft Light.

10. Layers>New Raster Layer.
Flood Fill the layer with color white.

11. Layers>New Mask layer>From image
Open the menu under the source window
and select the mask EF-Carnaval_Mask_2.



Layers>Merge>Merge Group.

12. Layers>New Raster Layer.

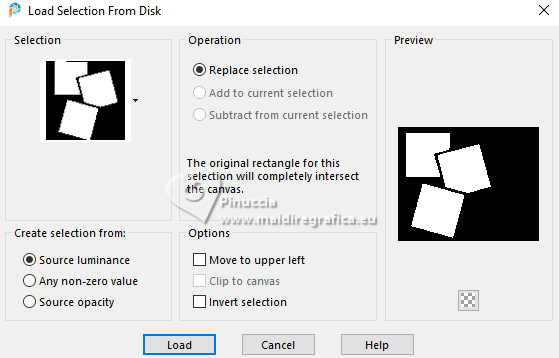

Selections>Load/Save Selection>Load Selection from Disk.
Look for and load the selection Carnaval_1



13. Your jpg image is still in memory: Edit>Paste into Selection.
Selections>Select None.
Layers>Arrange>Move Down.

14. Activate your top layer.

Effects>3D Effects>Drop Shadow, color #000000.



Layers>Merge>Merge Down.

15. Image>Resize, to 75%, resize all layers not checked.

K key to activate your Pick Tool
Position X: 14,00 - Position Y: 14,00.



M key to deselect the Tool.

16. Layers>Duplicate.
Layers>Arrange>Move Down.

Adjust>Blur>Gaussian Blur - radius 25.

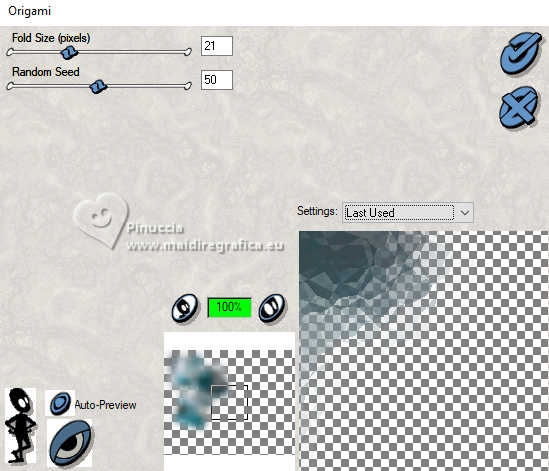

17. Effects>Plugins>Xenofex 1.0 - Origami.



Change the Blend Mode of this layer to Hard Light or to your liking.

18. Activate your top layer.

Effects>3D Effects>Drop Shadow, same settings.

19. Activate your bottom layer.

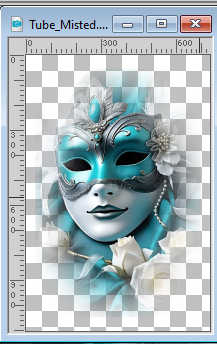

Open the misted Tube_Misted

Edit>Copy.
Go back to your work and go to Edit>Paste as new layer.
Image>Resize, to 75%, resize all layers ot checked.

20. K key to activate your Pick Tool
Position X: 438,00 - Position Y: 11,00.



Change the Blend Mode to Soft Light and reduce the opacity to 63%.

21. Open EF-Carnaval_Poema

Edit>Copy.
Go back to your work and go to Edit>Paste as new layer.
Layers>Arrange>Bring to Top.

Pick Tool
Position X: 579,00 - Position Y: 27,00.



M key to deselect the Tool.

22. Open EF-Carnaval_Texto

Edit>Copy.
Go back to your work and go to Edit>Paste as new layer.
Move the text to your liking.

Effects>3D Effects>Drop Shadow, same settings.

23. Layers>Merge>Merge All.

Image>Add Borders, 20 pixels, symmetric, color #ffffff.
Image>Add Borders, 20 pixels, symmetric, color #38adbb.
Image>Add Borders, 20 pixels, symmetric, color #ffffff.

24. Activate your Magic Wand Tool
and click in the first border to selectit.

Effects>3D Effects>Inner Bevel.



Selections>Select None.

25. Click on the second border to select it.

Effects>3D Effects>Inner Bevel, same settings.

Selections>Select None.

26. Click on the third border to select it.

Effects>3D Effects>Inner Bevel, same settings.

Selections>Select None.

27. Selections>Select All.
Selections>Modify>Contract - 60 pixels.
Selections>Invert.

Selections>Promote Selection to Layer.

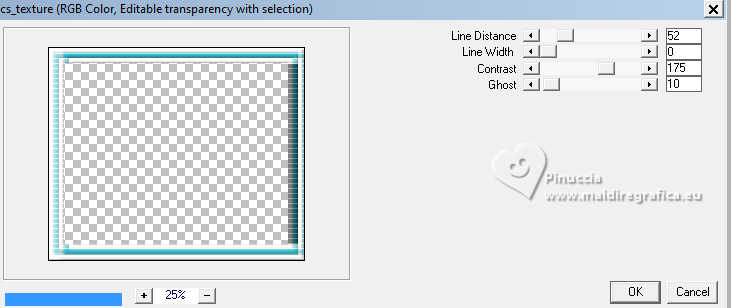

28 Effects>Plugins>Carolaine and Sensibility - cs_Texture



Image>Mirror>Mirror horizontal.
Selections>Select None.

29. Effects>Reflection Effects>Rotating Mirror.



30. Sign your work on a new layer

Image>Add Borders, 1 pixels, symmetric, color #000000.

Image>Resize, 850 pixels width, resize all layers checked.

Save as jpg.

Versions with Pinterest Images












If you have problems or doubts, or you find a not worked link,
or only for tell me that you enjoyed this tutorial, write to me.

16 February 2026
