This tutorial, created with PSP9, was translated with PspX9 and PSP2020, but it can also be made using other versions of PSP.
Since version PSP X4, Image>Mirror was replaced with Image>Flip Horizontal,
and Image>Flip with Image>Flip Vertical, there are some variables.
In versions X5 and X6, the functions have been improved by making available the Objects menu.
In the latest version X7 command Image>Mirror and Image>Flip returned, but with new differences.
See my schedule here


French Translation here
Your versions here






For this tutorial, you will need:


(you find here the links to the material authors' sites)




consult, if necessary, my filter section here
Filters Unlimited 2.0 here
Mura's Meister - Perspective Tiling here
AP Lines - Lines SilverLining here
FM Tile Tools - Blend Emboss, Saturation Emboss here
VM Distortion - Kaleidoscope here
VM Toolbox - Zoom Blur here
Filter Factory Gallery S - Itsa edge thing here
Filters VM Distortion, VM Toolbox and Factory Gallery can be used alone or imported into Filters Unlimited.
(How do, you see here)
If a plugin supplied appears with this icon it must necessarily be imported into Unlimited





You can change Blend Modes according to your colors.

In the newest versions of PSP, you don't find the foreground/background gradient (Corel_06_029).
You can use the gradients of the older versions.
The Gradient of CorelX here



1. Open a new transparent image 1000 x 900 pixels.

2. Set your foreground color to #a29642,
and your background color to #221a01.

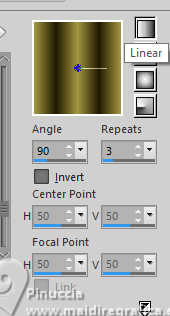

Set your foreground color to a Foreground/Background Gradient, style Linear.



Flood Fill the transparent image with your Gradient.

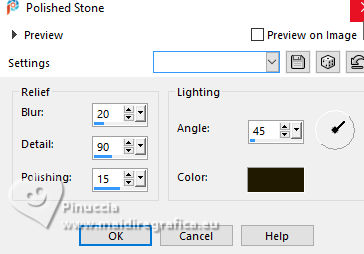

2. Effects>Texture Effects>Polished Stone, background color.



3. Effects>Plugins>FM Tile Tools - Blend Emboss



I applied the filter 3 times; optional for your versions;
The choice depends on your colors

4. Layers>Duplicate.

Effects>Plugins>Mura's Meister - Perspective Tiling.

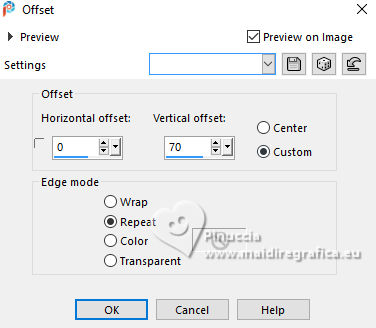

5. Effects>Image Effects>Offset.

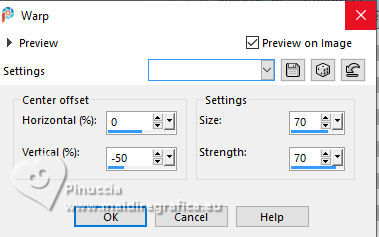

6. Effects>Distortion Effects>Warp.



7. Layers>Duplicate.

Effects>Distortion Effects>Polar Coordinates.



Layers>Arrange>Move Down.

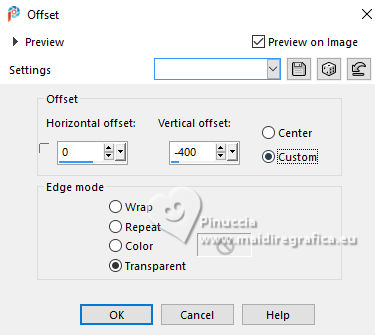

8. Effects>Image Effects>Offset.



9. Close the layer Raster 1 (to see better).

Activate your Magic Wand Tool
Use all layers checked



and click in the center of the circle to select it.



10. Selections>Modify>Expand - 5 pixels.

Layers>New Raster Layer.
Layers>Arrange>Move Down.

Flood Fill the layer with your Gradient.

11. Effects>Plugins>AP Lines - Lines SilverLining.



12. Effects>Plugins>FM Tile Tools - Saturation Emboss



Selections>Select None.

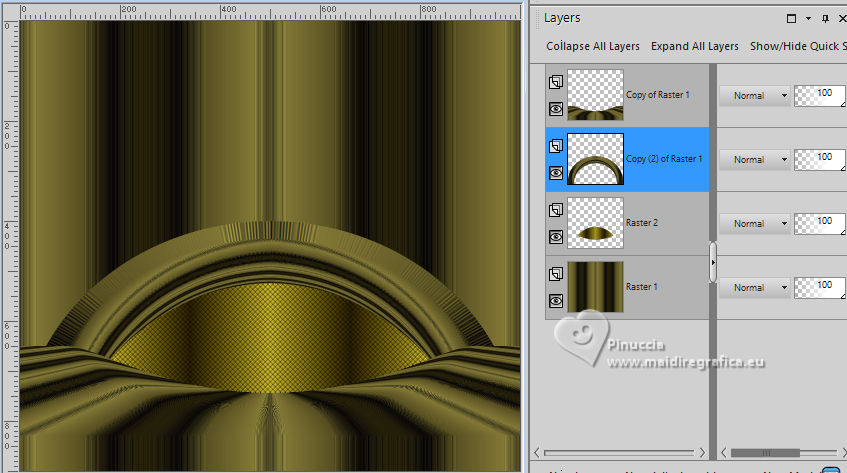

13. Open the closed layer
and activate the circle's layer, Copy 2 of Raster 1.



Effects>3D Effects>Drop Shadow, color black.



Edit>Repeat Drop Shadow (optional in your versions).

14. Layers>Merge>Merge Down.

Stay on the layer Raster 2.

Layers>Duplicate.

15. Effects>Plugins>VM Distortion - Kaleidoscope.

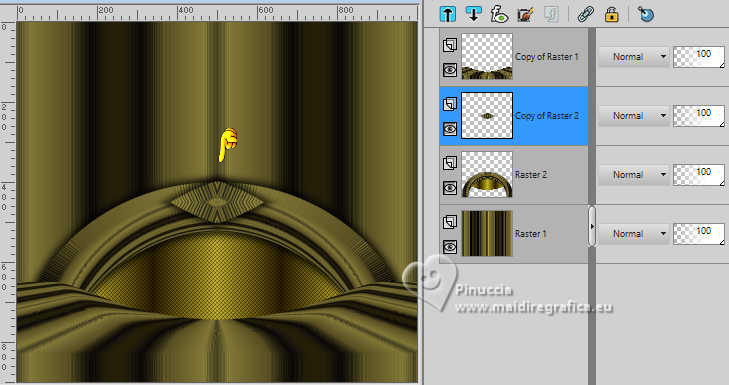

You have this

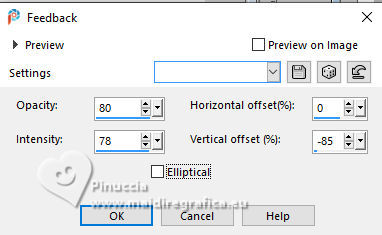

16. Effects>Reflection Effects>Feedback.

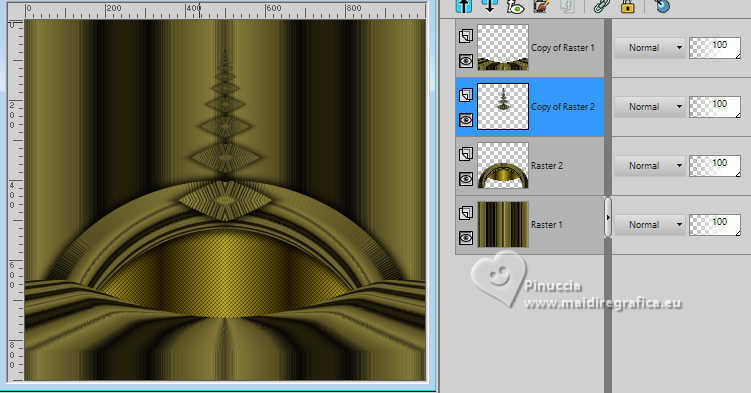

You have this



17. Répéter Effects>Plugins>VM Distortion - Kaleidoscope, same settings.



18. Effects>Plugins>FM Tile Tools - Saturation Emboss



19. Activate the circle's layer, Raster 2.
Layers>Duplicate.
Layers>Arrange>Move Down.

20. Effects>Plugins>VM Toolbox - Zoom Blur.



Effects>Plugins>Filters Unlimited 2.0 - Filter Factory Gallery S - Itsa edge thing, default settings.



21. Again Effects>Plugins>FM Tile Tools - Saturation Emboss(optional in your versions).



22. Activate your top layer.

Open the tube 3859-luzcristina

Edit>Copy.
Go back to your work and go to Edit>Paste as new layer.

Move the tube to the left side.

Effects>3D Effects>Drop Shadow, at your choice.

23. Open the text Texto

Edit>Copy.
Go back to your work and go to Edit>Paste as new layer.

Move the text to your liking.

Effects>3D Effects>Drop shadow, at your choice.

24. Image>Add Borders, 6 pixels, symmetric, dark color.
Image>Add Borders, 2 pixels, symmetric, light color.

Image>Add Borders, 6 pixels, symmetric, dark color.
Image>Add Borders, 2 pixels, symmetric, light color.

25. Image>Add Borders, 60 pixels, symmetric, color white.

Activate your Magic Wand Tool
and click in this border to select it.

Flood Fill the selection with your Gradient.

26. Effects>Plugins>AP Lines - Lines SilverLining, same settings.

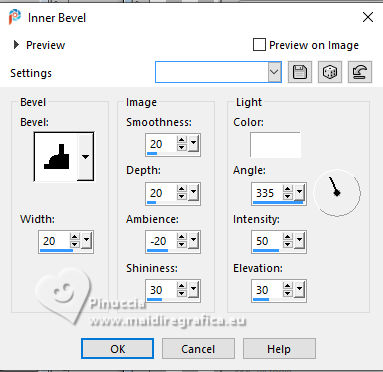

Effects>3D Effects>Inner Bevel.



Selections>Select None.

27. Image>Resize, to 82%, resize all layers checked.

28. Sign your work and save as jpg.










If you have problems or doubts, or you find a not worked link,
or only for tell me that you enjoyed this tutorial, write to me.

1 May 2025
