This tutorial has been translated with PSPX9 and PSP2020, but it can also be made using other versions of PSP.
Since version PSP X4, Image>Mirror was replaced with Image>Flip Horizontal,
and Image>Flip with Image>Flip Vertical, there are some variables.
In versions X5 and X6, the functions have been improved by making available the Objects menu.
In the latest version X7 command Image>Mirror and Image>Flip returned, but with new differences.
See my schedule here


French translation here
your versions here




For this tutorial, you will need:


For the mask thanks ValyScrapPassion.
The rest of the material is by Maria José.
(you find here the links to the material authors' sites)







consult, if necessary, my filter section here
Filters Unlimited 2.0 here
Carolaine and Sensibility - CS-Linea-H, CS-LDots here
Mura's Seamless - Emboss at Alpha here
Filtres Mura's Seamless can be used alone or imported into Filters Unlimited.
(How do, you see here)
If a plugin supplied appears with this icon it must necessarily be imported into Unlimited



You can change Blend Modes according to your colors.



Copy the selection in the Selections Folder.

Open the mask and the pattern in PSP and minimize them with the rest of the material.

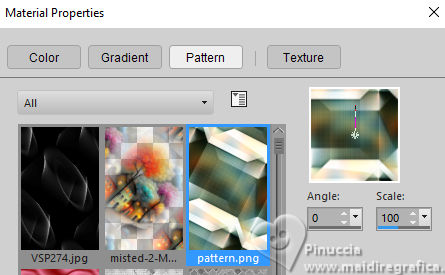

Set your foreground color to Patter
colorize to your liking.
Effect Adjust-Variation or other.



Set your background color to a light color of your pattern; for me #93b3ab.



1. Open a new transparent image 1000 x 700 pixels.
Flood Fill the transparent image with your pattern (already colorized).

2. Effects>Reflections Effects>Rotating Mirror.



Repeat Effects>Reflection Effects>Rotating Mirror, angle 180.

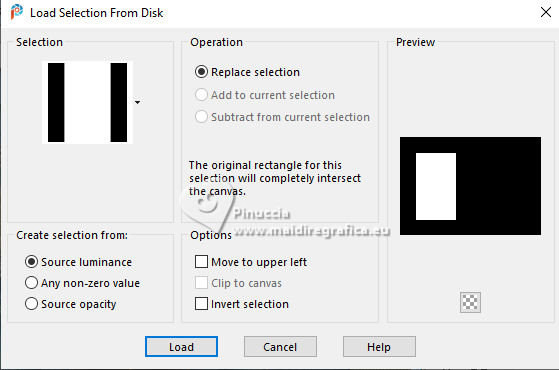

3. Selections>Load/Save Selection>Load Selection from Disk.
Look for and load the selection anyara-MJ



Selections>Promote Selection to Layer.

4. Adjust>Blur>Gaussian Blur - radius 30.



Selections>Select None.

5. Effects>Plugins>Carolaine and Sensibility - CS-Linear-H



6. Selections>Load/Save Selection>Load Selection from Disk.
Load again the selection anyara-MJ



7. Layers>New Raster Layer.

Open the tube misted-2-MJ

Edit>Copy.
Go back to your work and go to Edit>Paste into Selection.
Keep selected.

8. Layers>Merge>Merge Down.

9. Layers>New Raster Layer.

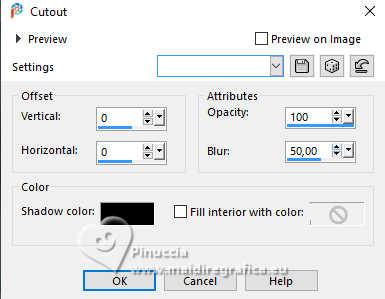

Effects>3D Effects>Cutout.



Layers>Merge>Merge Down.
Selections>Select None.

10. Layers>Duplicate.
Image>Mirror>Mirror Horizontal.

Layers>Merge>Merge Down.

11. Layers>New Raster Layer.
Flood Fill the layer with your light background color.

12. Layers>New Mask layer>From image
Open the menu under the source window and you'll see all the files open.
Select the mask VSP274



Layers>Merge>Merge Group.

13. Effects>Plugins>Mura's Seamless - Emboss at Alpha, default settings.



Change the Blend Mode of this layer to Screen.

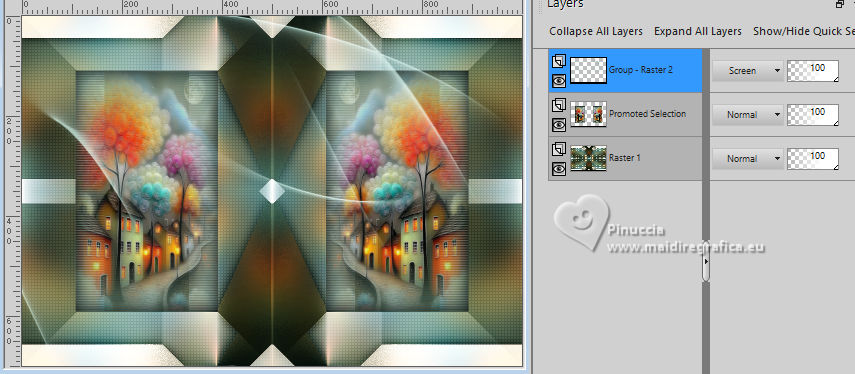

Your tag and the layers - adapt Blend Mode and opacity according to your work.



14. Open deco-final

Edit>Copy.
Go back to your work and go to Edit>Paste as new layer.

Don't move it.

15. Open tube-anyara-MJ

Edit>Copy.
Go back to your work and go to Edit>Paste as new layer.

Image>Resize, to 70%, resize all layers not checked.
Position correctly the tube.

Effects>3D Effects>Drop Shadow, at your choice.

16. Image>Add borders, 1 pixels, symmetric, background color #93b3ab.

17. Selections>Select All.

Edit>Copy
(Edit>Paste as new image, for caution, and minimize).

Image>Add Borders, 15 pixels, symmetric, color white.

Effects>3D Effects>Drop Shadow, color black.



Selections>Select None.

18. Image>Add Borders, 1 pixel, symmetric, background color #93b3ab.

19. Selections>Select None.

Image>Add Borders, 40 pixels, symmetric, color white.
Selections>Invert.

20. Edit>Paste into Selection - the image of step 17.

21. Adjust>Blur>Gaussian Blur - radius 35.



22. Effects>Plugins>Carolaine and Sensibility - CS-LDots



23. Adjust>Sharpness>Sharpen More.

Selections>Invert.

Effects>3D Effects>Drop Shadow, last settings.

Selections>Select None.

24. Sign your work on a new layer.

Image>Add Borders, 1 pixel, symmetric, color black.

25. Image>Resize, 1000 pixels width, resize all layers checked.

Save as jpg.

Versions with my tubes from Pinterest images








If you have problems or doubts, or you find a not worked link,
or only for tell me that you enjoyed this tutorial, write to me.

6 April 2026
