This tutorial was written with PSP2020 and translated with PSPX9, PSPX8 and PSP2020, but it can also be made using other versions of PSP.
Since version PSP X4, Image>Mirror was replaced with Image>Flip Horizontal,
and Image>Flip with Image>Flip Vertical, there are some variables.
In versions X5 and X6, the functions have been improved by making available the Objects menu.
In the latest version X7 command Image>Mirror and Image>Flip returned, but with new differences.
See my schedule here


italian translation here
french translation here
your versions here




For this tutorial, you will need:



Thanks for a mask Silvie
The rest of the material is by Yedralina.
(The links of the tubemakers here).








consult, if necessary, my filter section here
Filters Unlimited 2.0 here
Toadies - Bitches Crystal here
Filters Toadies can be used alone or imported into Filters Unlimited.
(How do, you see here)
If a plugin supplied appears with this icon it must necessarily be imported into Unlimited







You can change Blend Modes according to your colors.

In the newest versions of PSP, you don't find the foreground/background gradient (Corel_06_029).
You can use the gradients of the older versions.
The Gradient of CorelX here



If you have problems with Alpha Channel, open a new transparent image 1000 x 700 pixels,
and use the selections from disk.

Copy the preset in the Presets Folder.

Open the masks in PSP and minimize them with the rest of the material.

Colors



Set your foreground color to the color 1 #6d5684
and your background color to the color 2 #ac9abe



color 3 #382c44
color 4 #ffffff

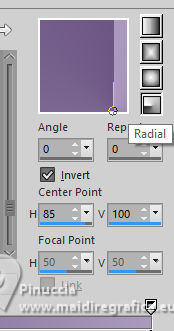

Set your foreground color to a Foreground/Background Gradient, style Radial.



1. Open Canal Alpha_FERIA26

This image, that will be the basis of your work, is not empty,
but contains the selections saved to alpha channel.

Flood Fill the transparent image with your Gradient.

2. Effects>Reflection Effects>Rotating Mirror, default settings.



3. Layers>Duplicate.
Image>Resize, to 75%, resize all layers not checked.

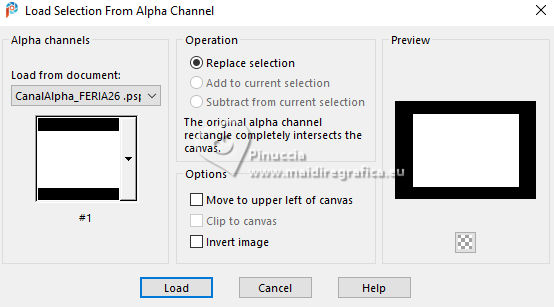

4. Selections>Load/Save Selection>Load Selection from Alpha Channel.
The selection #1 is immediately available.
You just have to click Load.



or Selection from Disk ©Yedralina_Sel0149

5. Effects>Plugins>Filters Unlimited 2.0 - Toadies - Bitches Crystal, default settings.



6. Effects>Reflection Effects>Rotating Mirror.



Selections>Select None.

7. Layers>Duplicate.
Image>Resize, to 40%, resize all layers not checked.

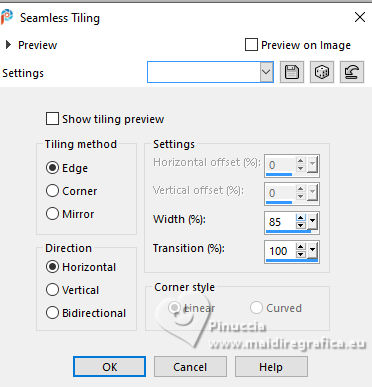

8. Effects>Image Effects>Seamless Tiling.



9. Activate your bottom layer, Raster 1.

Effects>Reflection Effects>Rotating Mirror



Edit>Copy.
Edit>Paste as new image, and minimize this image.

Go back to your work.

10. We have this:



11. Layers>Merge>Merge visible.

12. Effects>Image Effects>Seamless Tiling.

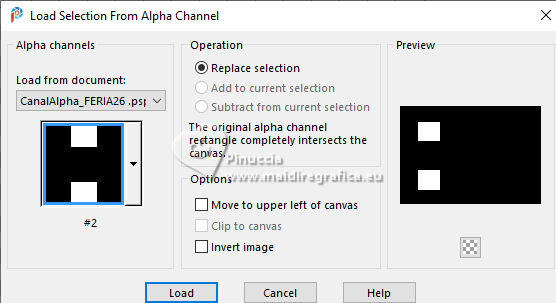

13. Selections>Load/Save Selection>Load Selection from Alpha Channel.
Open the selections menu and load the selection #2 (or ©Yedralina_Sel0146)



14. Open the misted 4642©Yedralina

Erase the watermark and go to Edit>Copy.
Go back to your work and go to Edit>Paste as new layer.

Position the tube on the selection to your liking.



15. Selections>Invert.
Press CANC on the keyboard
Selections>Invert.

16. Reduce the opacity of this layer +/-57%
(or change the Blend Mode to Soft Light, according to your tube)

17. Selections>Modify>Contract - 40 pixels.

18. Selections>Promote Selection to Layer.

19. Effects>3D Effects>Drop Shadow, color 3 #382c44.



20. Layers>New Raster Layer.

Selections>Load/Save Selection>Load Selection from Alpha Channel.
Open the selections menu and load again the selection #2 (or ©Yedralina_Sel0146)



The new selection will replace the previous one

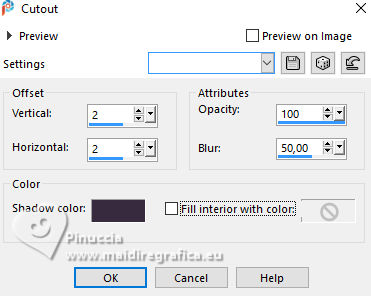

21. Effects>3D Effects>Cutout - color 3 #382c44.



22. Change the Blend Mode of this layer to Hard Light.

23. Layers>New Raster Layer.

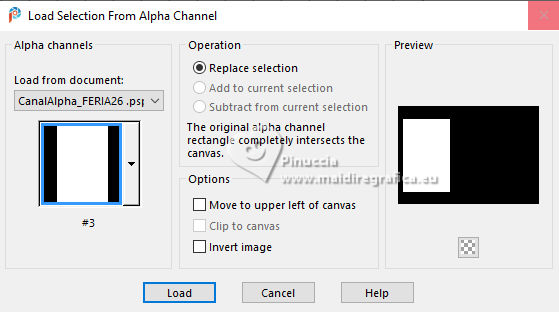

Selections>Load/Save Selection>Load Selection from Alpha Channel.
Open the selections menu and load the selection #3 (or ©Yedralina_Sel0147)



24. Effects>3D Effects>Cutout, last settings.

25. Layers>New Raster Layer.

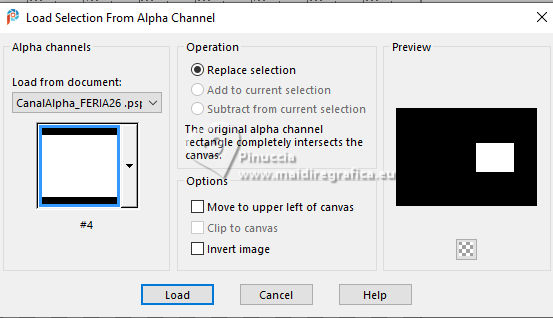

Selections>Load/Save Selection>Load Selection from Alpha Channel.
Open the selections menu and load the selection #4 (or ©Yedralina_Sel0148)



Edit>Paste into Selection - the misted is still in memory.

Adjist>Sharpness>Sharpen.

26. Layers>New Raster Layer.

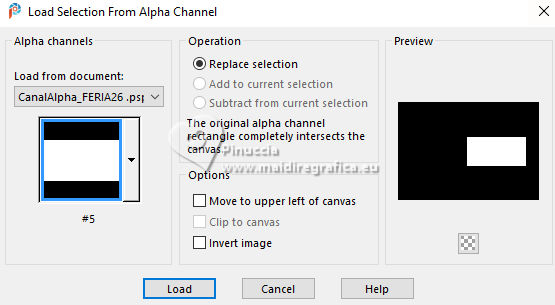

Selections>Load/Save Selection>Load Selection from Alpha Channel.
Open the selections menu and load the selection #5 (or ©Yedralina_Sel0150)



Effects>3D Effects>Cutout, last settings.
Selections>Select None.

27. Set your foreground color to the color white.

Layers>New Raster Layer.
Flood Fill the layer with the color white

Layers>New Mask layer>From image
Open the menu under the source window and you'll see all the files open.
Select the mask Empty_1400x1050



Layers>Merge>Merge Group.

Layers>Arrange>Move Down - 2 times.

Reduce the opacity of this layer +/-75%.

28. Layers>New Raster Layer.
Flood Fill the layer with white.

Layers>New Mask layer>From image
Open the menu under the source window
and select the mask Silvie_Mask_Decor9100



Layers>Merge>Merge Group.

29. Effects>User Defined Filter - Emboss 5



30. Effects>3D Effects>Drop Shadow, color 3 #382c44.



31. Activate your top layer.

Open your main tube 4572©Yedralina

Erase the watermark and go to Edit>Copy.
Go back to your work and go to Edit>Paste as new layer.

Image>Resize, if necessary, for the supplied tube to 75%, resize all layers not checked.
Adjust>Sharpness>Sharpen.

Position correctly the tube

Effects>3D Effects>Drop Shadow, color 3 #382c44.



32. Open your deco tube 4641©Yedralina

Erase the watermark and go to Edit>Copy.
Go back to your work and go to Edit>Paste as new layer.

Image>Resize, if necessary, for me I resized 2 times to 50%, resize all layers not checked.
Adjust>Sharpness>Sharpen.

Position correctly the tube.

Effects>3D Effects>Drop Shadow, last settings.

Change the Blend Mode of this layer to Luminance (Legacy).

33. Open the text Texto FERIA26©Yedralina

Edit>Copy.
Go back to your work and go to Edit>Paste as new layer.

If you prefer, you can write it in your language with the provided fonts;
background color white

FERIA



Faralaes y Alegria (flamenco and joy)

really faralaes is translated as flounces or frills
in contest: flamenco dress.



Layers>Merge>Merge Down

34. Image>Free Rotate - 90 degrees to left



35. Move the text to the left, see the final tag.

Effects>3D Effects>Drop Shadow, color 3 #382c44.



36. For the borders, set again your foreground color to the color 1.



Image>Add Borders, 2 pixels, symmetric, background color.
Selections>Select All.

37. Image>Add Borders, 20 pixels, symmetric, foreground color.

Effects>3D Effects>Drop Shadow, color 3 #382c44.



38. Image>Add Borders, 2 pixels, symmetric, background color
Image>Add Borders, 2 pixels, symmetric, foreground color
Image>Add Borders, 2 pixels, symmetric, background color.

Selections>Select All.

39. Image>Add Borders, 40 pixels, symmetric, foreground color
40. Selections>Invert.

Activate the image minimized at step 9, and go to Edit>Copy.
Go back to your work and go to Edit>Paste into Selection.

41. Adjust>Blur>Gaussian Blur - radius 25.



Selections>Invert.

Effects>3D Effects>Drop Shadow, color 3 #382c44.



Selections>Select None.

42. Image>Add Borders, 1 pixel, symmetric, foreground or background color, to your liking.

43. Image>Resize, 1000 pixels width, resize all layers checked.

44. Sign your work on a new layer.

45. Layers>Merge>Merge All and save as jpg.

For the tubes of this version thanks Yedralina



Versions with my tubes from Pinterest images






If you have problems or doubts, or you find a not worked link, or only for tell me that you enjoyed this tutorial, write to me.

13 April 2026
