This tutorial, created with PSP2019, was translated with PSPX9 and PSP2020, but it can also be made using other versions of PSP.
Since version PSP X4, Image>Mirror was replaced with Image>Flip Horizontal,
and Image>Flip with Image>Flip Vertical, there are some variables.
In versions X5 and X6, the functions have been improved by making available the Objects menu.
In the latest version X7 command Image>Mirror and Image>Flip returned, but with new differences.
See my schedule here


Italian translation qui
French translation here
Your versions ici





For this tutorial, you will need:
Tube at your choice
The rest of the material



The tubes used by Inge-Lore and for my versions are by SBWebdesigns Creation
(you find here the links to the material authors' sites)



consult, if necessary, my filter section here
Filters Unlimited 2.0 here
VM Toolbox - Instant Tile here
Mehdi - Sorting Tiles here
Mura's Meister - Perspective Tiling here
Mura's Meister - Pole Transform here
Simple - Top Left Mirror here
AAA Frames - Foto Frame here
Filters VM Toolbox and Simple can be used alone or imported into Filters Unlimited.
(How do, you see here)
If a plugin supplied appears with this icon it must necessarily be imported into Unlimited





You can change Blend Modes according to your colors.



1. Choose 3 colors from your tubes.



Set your foreground color to color 3
and your background color to color 2



Open a new transparent image 1000 x 650 pixels.
Flood Fill the transparent image with color 3.

Selections>Select All.

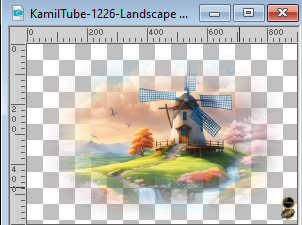

Open your background tube KamilTube-1226-Landscape

Erase the watermark and go to Edit>Copy.
Go back to your work and go to Edit>Paste into Selection.
Selections>Select None.

Effects>Image Effects>Seamless Tiling, default settings.

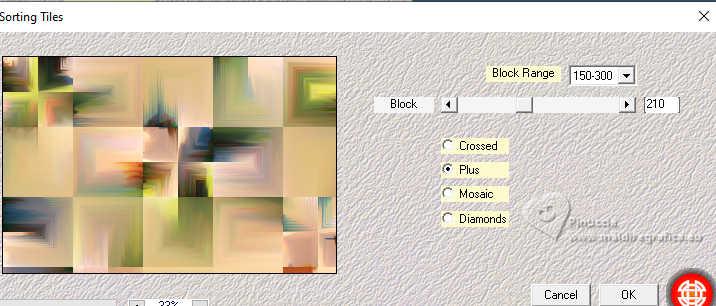

2. Effects>Plugins>Mehdi - Sorting Tiles.

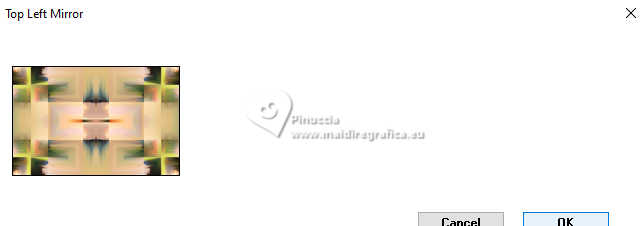

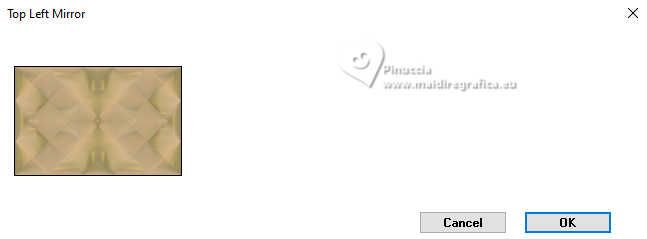

Effects>Plugins>Simple - Top Left Mirror.

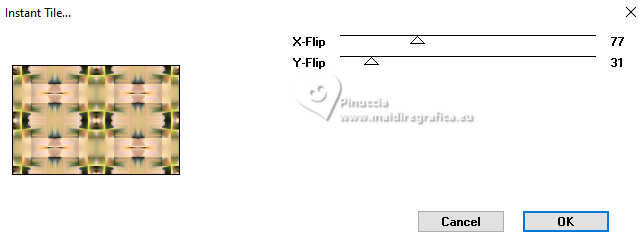

Effects>Plugins>VM Toolbox - Instant Tile.



Layers>Duplicate.
Image>Resize, to 55%, resize all layers not checked.

K key to activate our Pick Tool
and set Position X: 226,00 and Position Y: 60,00.

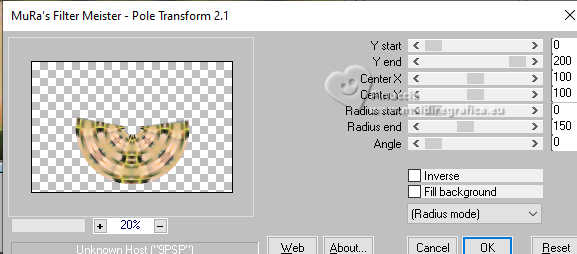

Effects>Plugins>Mura's Meister - Pole Transform.



3. Image>Free Rotate - 90 degrees to left.



K key to activate your Pick Tool
and set Position X: -54,00 and Position Y: 35,00.



Activate the layer Raster 1.

Selections>Select All.
Image>Crop to Selection.

Activate your top layer.

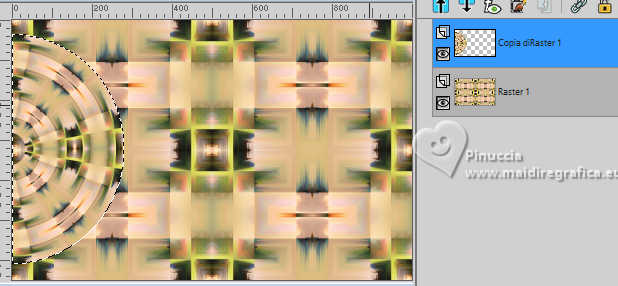

Activate your Magic Wand Tool
and click in the transparent right part to select it.



Selections>Invert.

4. Layers>New Raster Layer.
Flood Fill the layer with color 2.

Selections>Modify>Contract - 5 pixels.
Press CANC on the keyboard
Selections>Select None.
Layers>Merge>Merge Down.

Pick tool
and set Position X: -4,00 (keep Position Y: 35,00).



Effects>3D Effects>Drop Shadow, color black.



Layers>Duplicate.
Image>Resize, to 80%, resize all layers not checked.

Set Position X: -5,00 (keep Position Y: 65,00).



Layers>Duplicate.
Image>Resize, to 80%, resize all layers not checked.

Set Position X: -5,00 (keep Position Y: 118,00).



Layers>Duplicate.
Image>Resize, to 80%, resize all layers not checked.

Set Position X: -5,00 (keep Position Y: 159,00)



5. Layers>Duplicate.
Image>Resize, to 80%, resize all layers not checked.

Set Position X: -5,00 (keep Position Y: 192,00).

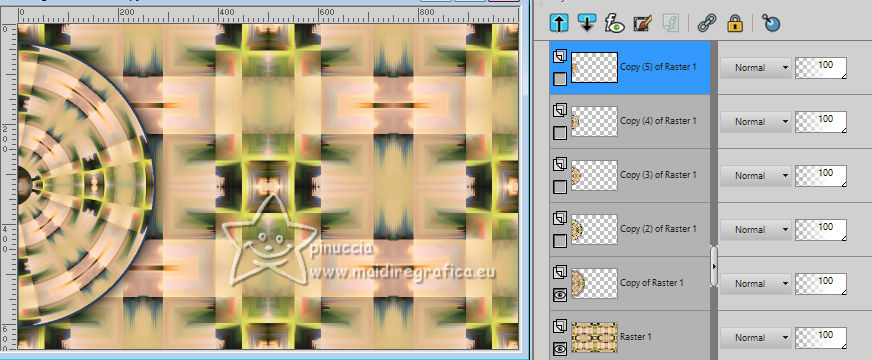

Close the 4 top layers.

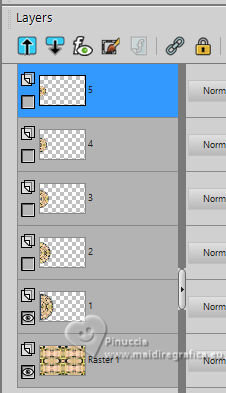

Rename the layer from the botton with 1,2,3,4,5



6. Activate your bottom layer, Raster 1.
Layers>Duplicate.

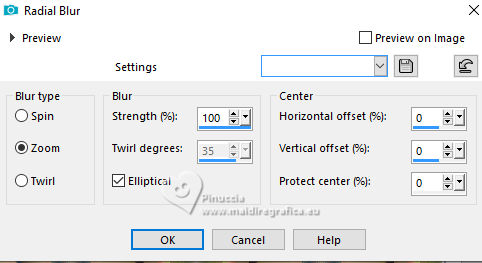

Adjust>Blur>Radial Blur.



Layers>Duplicate.

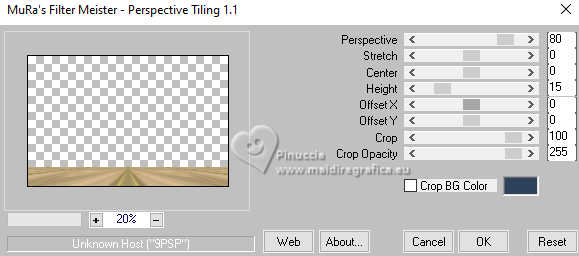

Effects>Plugins>Mura's Meister - Perspective Tiling.



Activate your Magic Wand Tool feather 40,
and click in the trasparent part to selec it.

Press 5 times CANC on the keyboard.
Selections>Select None.

don't forget to set again the feather to 0

7. Activate the layer Copy of Raster 1.

Effects>Image Effects>Seamless Tiling, default settings.

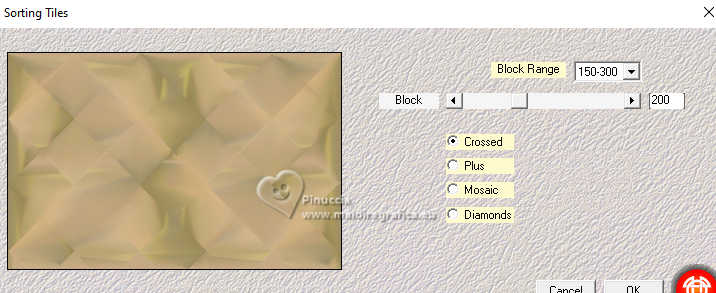

Effects>Plugins>Mehdi - Sorting Tiles.



Effects>Edge Effects>Enhance.

Effects>Plugins>Simple - Top Left Mirror.



8. Activate again your background tube and go to Edit>Copy.

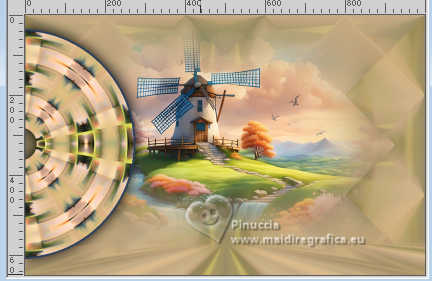

Go back to your work and go to Edit>Paste as new layer.

Image>Resize, if necessary, for the supplied tube I didn't it,
and I did Image>Mirror>Mirror horizontal (Image>Mirror).

Adjust>Sharpness>Sharpen.



Activate your top layer.

Open your person tube and go to Edit>Copy.
Go back to your work and go to Edit>Paste as new layer.

Image>Resize, if necessary, resize all layers not checked.
Adjust>Sharpness>Sharpen.

Effects>3D Effects>Drop Shadow.



9. Activate the layer Raster 1.
Edit>Copy.

Activate your top layer.
Layers>New Raster Layer.

Selections>Select All.

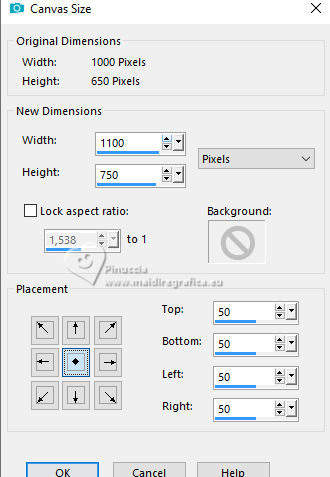

Image>Canvas Size - 1100 x 750 pixels



Selections>Invert.
Flood Fill with color 2.

Selections>Modify>Contract - 5 pixels.

Layers>New Raster Layer.
Edit>Paste into Selection.

Adjust>Blur>Gaussian Blur - radius 10.

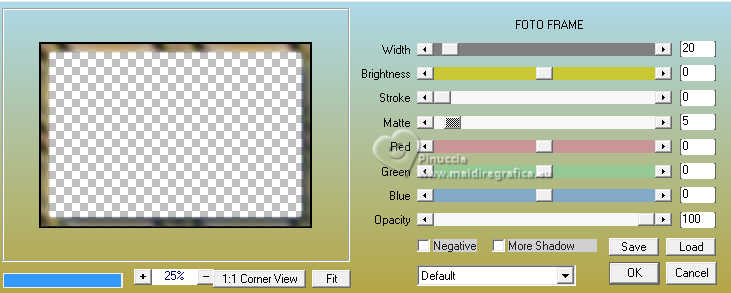

Effects>Plugins>AAA Frames - Foto Frame.



10. Selections>Select None.
Layers>Merge>Merge Down.

Layers>Arrange>Move Down.
If necessary, move also the tube's layer.

Open the text text

Edit>Copy.
Go back to your work and go to Edit>Paste as new layer.

Effects>3D Effects>Drop Shadow, color black.



Image>Resize, 1000 pixels width, resize all layers checked.
Sign your work on a new layer.

11. Animation

Edit>Copy Special>Copy Merged.
Open Animation Shop and go to Edit>Paste>Paste as new image.

***Go back to PSP.

Close the layer 1 and open the layer 2.

Edit>Copy Special>Copy Merged.
Go back to Animation Shp and go to Edit>Paste>Paste after the current frame.

***

Repeat from *** to *** with the layers 3-4-5.

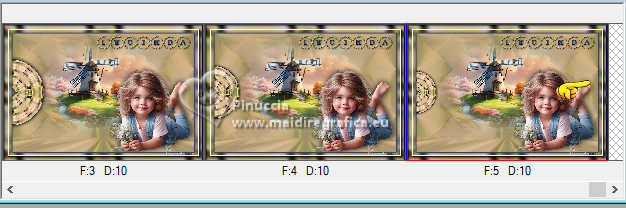

12. Now you have an animation composed by 5 frames.

Selections>Select All.
Edit>Copy.

Click in the last frame to select it
only this frame is selected and get the blue border



Edit>Paste>Paster after the current frame.
Animation>Reverse frames.

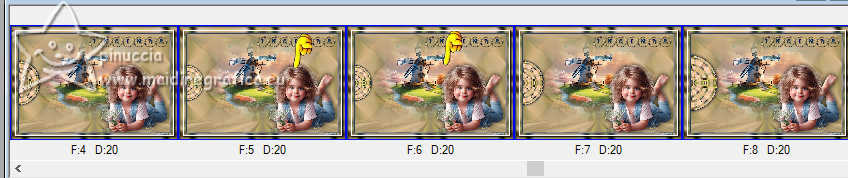

And now your animation is composed by 10 frames,
but the frame 5 and 6 are identiques.
Click on 1 of the 2 frames to select it and press CANC on the keyboard.
At last your animation is composed by 9 frame.



Edit>Select All.
Animation>Animation Properties and set to 20



Check the result clicking on View animation
and save as gif.



For the tubes of this version thanks Adrienne






If you have problems or doubts, or you find a not worked link, or only for tell me that you enjoyed this tutorial, write to me.

23 February 2024
